Husqvarna YTH2242 - 96043010000 (2009-10) Riding Tractor

Model: YTH2242 - 96043010000 (2009-10)

Back To Assemblies

Save Part Not Listed?
product name

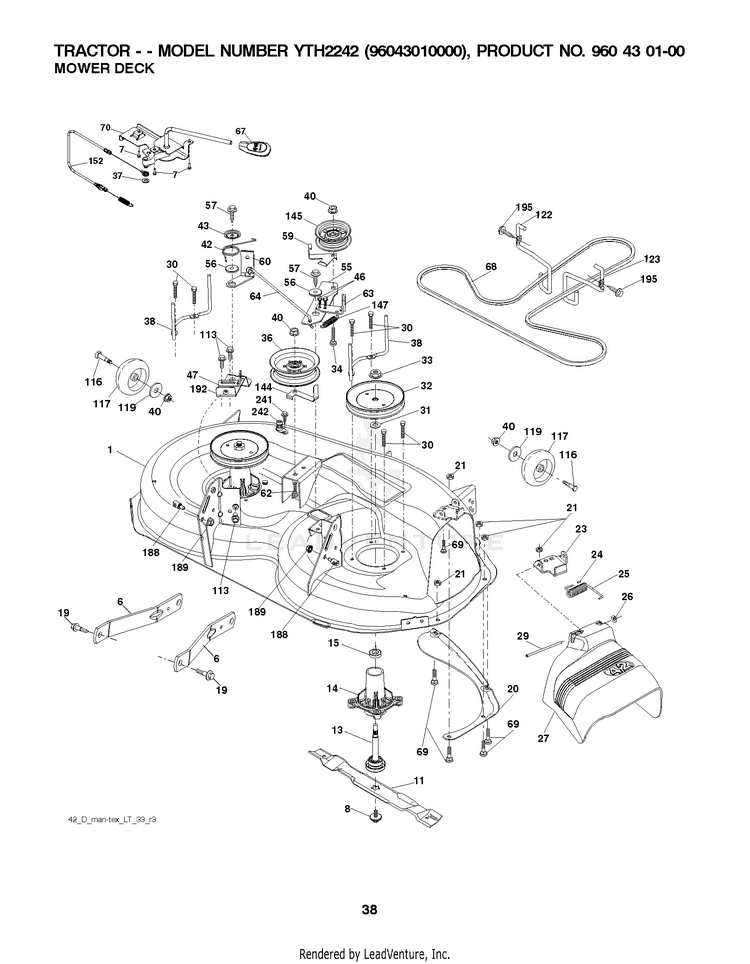

MOWER DECK / CUTTING DECK

...
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
xx
COUPLING.QUICK CONNECT HUS-532416405
...
38
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
63
ARM.BRAKE.ZINC HUS-532199478
...
xx
BLADE.42SP"3N1 HUS-532422719
...
xx
42" MULCH BLADE HUS-594892701
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
xx
Decks NOT SHOWN HUS-598602801
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
27
SHIELD.DEFLECTOR.MOWER.46"BLAC HUS-532405357
...
64
LINKAGE.BRAKE.ASM.ZINC HUS-532199918
...
xx
BLADE.42SP"3N1 HUS-532422719
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
xx
KIT.MANDREL.NONGREASE.TALL "Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included" HUS-587819701
...
70
CLUTCH.ASM.CABLE.HUSQ.TEX HUS-532406563
...
26
NUT PUSH M HUS-532110452
...
3
COVER.MANDREL.LH.46" LH HUS-532405507
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
59
SERVICE KIT GUARD 94 HUS-531165901
...
7
Screws HUS-596321701
...
29
Rods HUS-595297001
...
32
PULLEY.MANDREL.5.438.P HUS-532195945
...
56
SPACER.RETAINER HUS-532199092
...
200
Washers HUS-596135501
...
242
PORT.WASHOUT HUS-532415598
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
36
PULLEY.IDLER.2006 HUS-532196106
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
21
Hardware HUS-596040501
...
24
CAP-SLEEVE LT HUS-532105304
...
198
SERVICE KIT BAFFLE CENT HUS-531170601
...
11
42" HI-LIFT BLADE HUS-532138971
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
68
Belts HUS-598559101
...
69
Bolts HUS-596136401
...
240
Bolts HUS-596564404
...
189
GSPW Nuts HUS-596135701
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
19
BOLT.SHOULDER HUS-532196539
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
43
SRPING.TORSION.RETAINE HUS-532197256
...
122
SERVICE KIT BELT KEEPER LH HUS-531169501
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
197
GSPH HUS-596134901
...
144
SERVICE KIT BELT KEEPER HUS-531169801
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
113
BOLT.5/16HEX.WHS.HD HUS-817000510
...
33
Nuts HUS-596134801
...
60
ARM BRAKE MOWER RH 38" LH HUS-532199471
...
123
SERVICE KIT KEEPER BELT KEEPER RH HUS-531169701
...
34
GSPW Bolts HUS-596136101
...
57
SCREW 3/8-16X1 HUS-817000616
...
1
Decks HUS-598602801
...
42
SPRING.TORSION.BRAKE HUS-532198410
...
119
GSPH HUS-596134901
...
199
SERVICE KIT BAFFLE FRONT HUS-531170701
...
152
CABLE.CLUTCH.CABLE.W/SPRING HUS-532435110
...
15
BEARING HUS-532110485
...
195
SCREW, 3/8-16X3/4 HUS-817000612
...
2
COVER.MANDREL.RH.46" RH HUS-532405506
...
xx
BLADE.42"MULCH.PREMIUM HUS-594893101
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
116
Bolts HUS-596434404
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
147
SPRING RETURN HUS-532401872
...
47
BRKT.CLUTCH.CABLE HUS-532197250
