Husqvarna YTH224 T - 96041024900 (2011-09) Riding Tractor

Model: YTH224 T - 96041024900 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

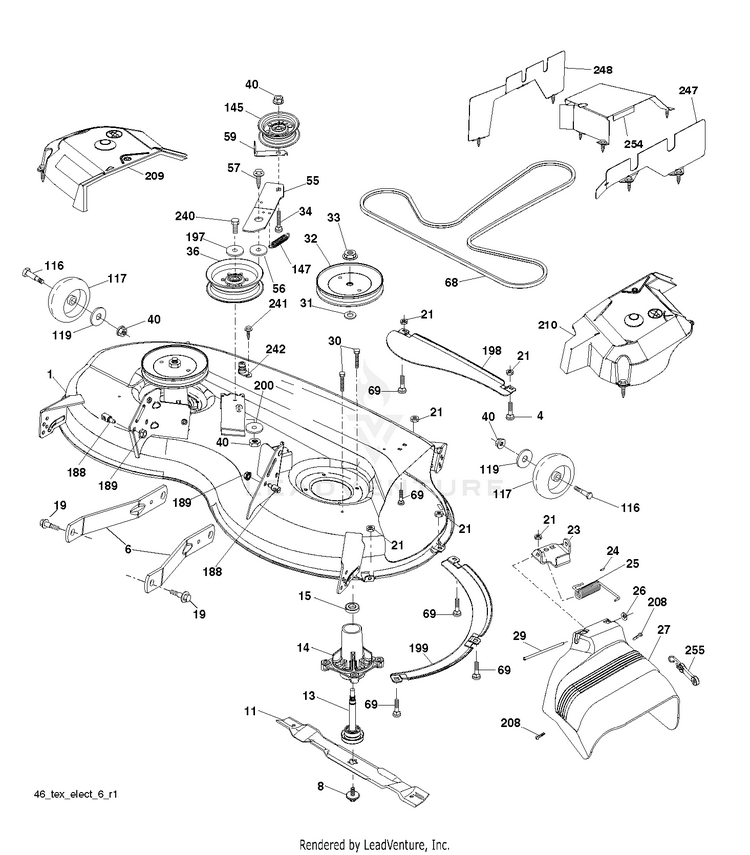

MOWER DECK / CUTTING DECK

...
...
19
BOLT.SHOULDER HUS-532196539
...
247
COVER.ASM.DECK.RH.TEX.46 HUS-583480201
...
1
KIT.SVC.DECK.WELD.46.TEX_428 HUS-547745901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
34
GSPW Bolts HUS-596136101
...
11
46" HIGH LIFT BLADE HUS-594892801
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
209
COVER.ASM.MANDREL.RH.TEX.46 HUS-583479901
...
242
PORT.WASHOUT HUS-532415598
...
199
SERVICE KIT BAFFLE FRONT HUS-531170701
...
68
V-BELT.DRIVE.MWR.MECHANICL.46" HUS-584453101
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
189
GSPW Nuts HUS-596135701
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
57
SCREW 3/8-16X1 HUS-817000616
...
210
COVER.ASM.MANDREL.RH.TEX.46 HUS-583480001
...
29
Rods HUS-595297001
...
26
NUT PUSH M HUS-532110452
...
147
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
197
GSPH HUS-596134901
...
--
KIT.MANDREL.NONGREASE.TALL "INCL HOUSING, SHAFT ASSEMBLY, BEARING ONLY" HUS-587819701
...
27
Deflectors HUS-597247101
...
56
SPACER.RETAINER HUS-532199092
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
116
Bolts HUS-596434404
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
198
SERVICE KIT BAFFLE CENT HUS-531170601
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
--
HUS-532421797
...
59
SERVICE KIT GUARD HUS-531165901
...
36
PULLEY.IDLER.2006 HUS-532196106
...
15
BEARING HUS-532110485
...
4
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
119
GSPH HUS-596134901
...
200
Washers HUS-596135501
...
69
Bolts HUS-596136401
...
240
Bolts HUS-596564404
...
255
KIT.STRAP.BUNGEE.DEFLECTOR.SVC HUS-583508201
...
254
COVER.ASM.REAR.DECK.TEX.46 HUS-583480301
...
21
Hardware HUS-596040501
...
248
COVER.ASM.DECK.LH.TEX.46 HUS-583480101
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
32
PULLEY.MANDREL.5.438.P HUS-532195945
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
33
Nuts HUS-596134801
