Husqvarna YTH220 TWIN - 96041002800 (2007-02) Riding Tractor

Model: YTH220 TWIN - 96041002800 (2007-02)

Back To Assemblies

Save Part Not Listed?

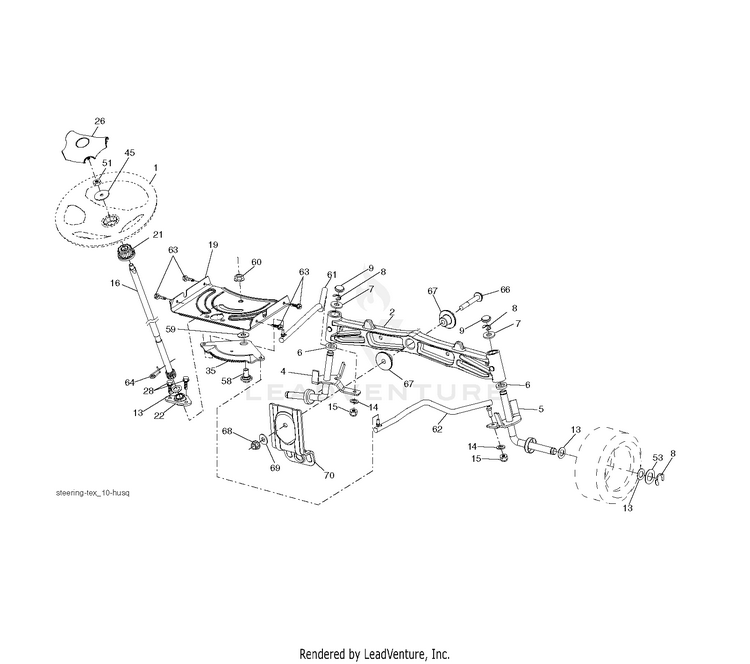

product name

STEERING 2

...
...
51
NUT.HEX.1/2-20 HUS-873940800
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
26
INSERT.CAP.STRG.WH.GRAY HUS-532193652
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
16
KIT.SRVC.STEERINGSHAFT.2HISHFT HUS-587738904
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
...
63
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
8
RING CLIP HUS-812000029
...
53
WASHER.HARDENED HUS-532188967
...
4
SPINDLE.WLDMT.LH.16IN.CE BLK.X HUS-538690901
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
2
AXLE.SVC.ASM CAST IRON.TEX HUS-532413591
...
67
BUSHING, AXLE HUS-529496302
...
61
Links HUS-597047802
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
6
WASHER THRUST HUS-532006266
...
13
WASHER HUS-532121749
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
1
STEERING WHEEL.PREM.2.BLK HUS-532186094
...
5
SPINDLE.ASM.RH.16"TIRE.CE HUS-583282701
...
45
WASHER 9/16"ID, 2 3/8"OD HUS-819183812
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
14
Washers HUS-596238701
...
62
Links HUS-597047902
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
7
WASHER HUS-532121748
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
