Husqvarna YTH220 TWIN - 96041002701 (2008-01) Riding Tractor

Model: YTH220 TWIN - 96041002701 (2008-01)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

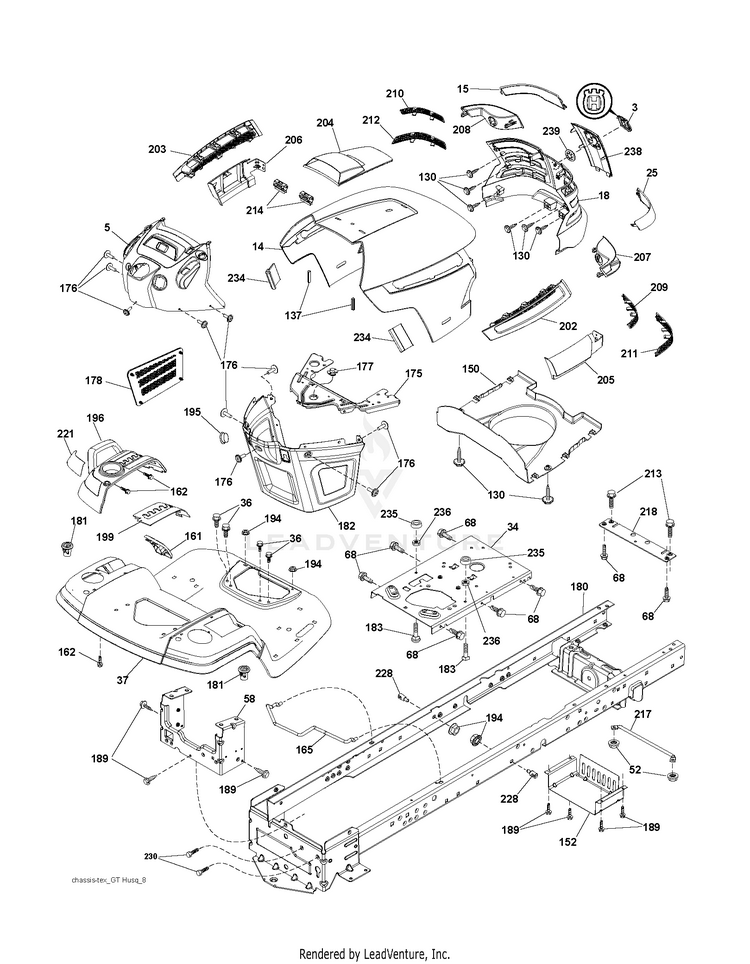

CHASSIS & ENCLOSURES

...
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY HUS-532403076
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
217
ROD.PIVOT.HOOD HUS-532409167
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
152
SHIELD.BROWNING.W/TEX HUS-532199535
...
209
INSERT.HEX.GRILL.HUSQ.GREY HUS-532199130
...
194
GSPW Nuts HUS-596135701
...
208
BEZEL.LH.TEX.GT.HUSQ HUS-532197199
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY HUS-532401709
...
239
NUT PUSH M HUS-532110452
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
183
Screws HUS-595305701
...
25
LENS.RH.TEX.GT.HUSQ.CL HUS-532198906
...
5
DASH.ASM.HUSQ.GT.E.RECT.W/CK HUS-532408701
...
230
BOLT.SHOULDER HUS-532196539
...
211
INSERT.HEX.GRILL.HUSQ. HUS-532199132
...
162
Screws HUS-596134101
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
68
Screws HUS-596030701
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
15
LENS.LH.TEX.GT.HUSQ.CL HUS-532198907
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
207
BEZEL.RH.TEX.GT.HUSQ HUS-532197198
...
212
INSERT.HEX.GRILL.HUSQ. HUS-532199133
...
161
FUEL WINDOW HUS-532401801
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
235
Spacers HUS-596564201
...
58
DRAWBAR.UPPER.2PC,LRG.FENDER HUS-532412281
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
196
RP CONSOLE.ASM.DECKLFT.W/ HUS-532400299
...
210
INSERT.HEX.GRILL.HUSQ. HUS-532199131
...
130
Screws HUS-596321701
...
52
Hardware HUS-596040501
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY HUS-532403048
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
177
BUSHING, STEERING HUS-532195227
...
137
BUMPER DASH HUS-532407590
...
221
REFLECTOR.LH.TEX GT HU HUS-532198909
...
150
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY HUS-532401711
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
238
TRIM.HUSQ.TG/CRD.SERVICE HUS-532408606
...
14
HOOD HUS-532411046
...
180
CHASS.WLDMNT.TL.12GA/2P.48/54 HUS-532415063
...
...
...
