Husqvarna YTH21K46 - 96045002101 (2010-06) Riding Tractor

Model: YTH21K46 - 96045002101 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

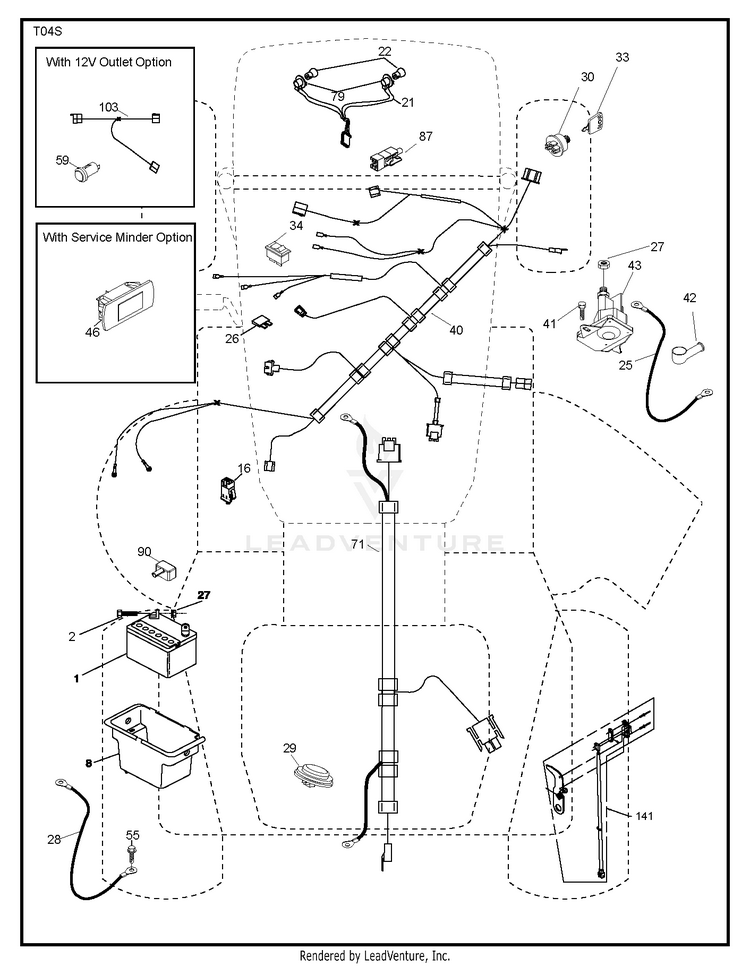

ELECTRICAL

...
...
71
HARNESS.IGN.CHASS.TEX.REAR.BAT HUS-532400449
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
79
BULB HOLDER ASM. HUS-532175242
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
26
FUSE 20AMP HUS-532175158
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
141
KIT T2.ROS 71677 HUS-532416977
...
87
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
40
HARNESS IGN. DASH HUS-532401098
...
34
SWITCH LT HUS-532110712
...
42
COVER.TERMINAL.RED HUS-532154336
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
25
CABLE.STARTER.8GA.17.5 HUS-585555501
...
8
BOX.BATTERY.MNT.REAR.L HUS-532193228
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
28
CABLE.BLACK.18"REAR.BA HUS-532198885
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
43
Solenoids HUS-582042802
...
41
Screws HUS-596437001
...
22
LIGHTBULB HUS-532004152
Schematic Image Zoomed
