Husqvarna YTH21K46 - 96043009500 (2009-10) Riding Tractor

Model: YTH21K46 - 96043009500 (2009-10)

Back To Assemblies

Save Part Not Listed?
product name

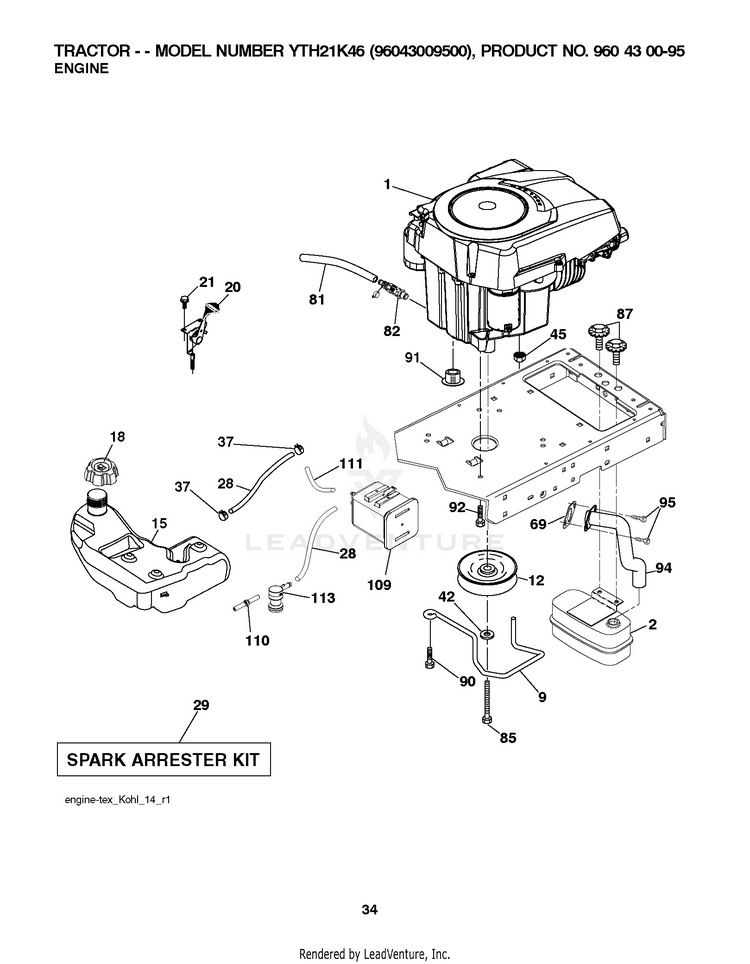

ENGINE

...
...
91
BUSHING.1.375OD HUS-532187495
...
12
RP_PULLEY ENGINE HUS-532405472
...
94
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
113
VALVES HUS-597791601
...
110
VALVE.ASM.ANTI-SLOSH HUS-532414118
...
92
SCREW 3/8-16X1 HUS-817120616
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
90
SCREW 3/8-16X1 HUS-817000616
...
82
VALUE.OIL.DRAIN HUS-532428287
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
111
Hoses HUS-587044580
...
37
HOSE CLAMP HUS-532123487
...
15
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
9
Keepers HUS-596501502
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
95
Screws HUS-596134201
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
21
Screws HUS-596321701
...
109
CANNISTER, CARBON HUS-532414114
...
42
Washers HUS-596238901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
