Husqvarna YTH21548 - 96043032300 (2019-10) Riding Tractor

Model: YTH21548 - 96043032300 (2019-10)

Back To Assemblies

Save Part Not Listed?
product name

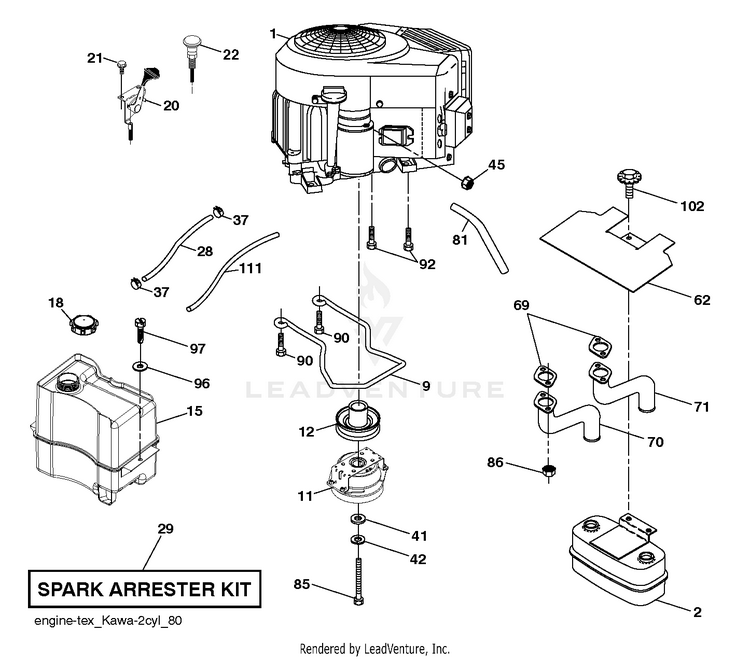

ENGINE

...
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
21
Screws HUS-596321701
...
45
Hardware HUS-596133601
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
42
Washers HUS-596238901
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.60" HUS-587044860
...
90
SCREW 3/8-16X1 HUS-817000616
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
69
GASKET HUS-532178151
...
111
Hoses HUS-587044580
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
71
TUBE.EXHAUST.RH.FR961/FR730 RH HUS-583955701
...
9
Keepers HUS-596501502
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
92
SCREW 3/8-16X1 HUS-817120616
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
15
FUEL TANK ASSEMBLY 2.5 GAL HUS-597954504
...
37
HOSE CLAMP HUS-532123487
...
70
TUBE.EXHAUST.LH.FR961/FR730 LH HUS-583955601
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
96
Washers HUS-596135301
...
1
Engine Kawa Model No. FR651V (593006001) HUS-000000000
...
18
FUEL.CAP.ASM.2.25TETHRED.RATCH HUS-587382901
...
41
WASHER HUS-532126197
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
