Husqvarna YTH20F42 T - 96043000501 (2006-02) Riding Tractor

Husqvarna YTH20F42 T - 96043000501 (2006-02) Riding Tractor

Model: YTH20F42 T - 96043000501 (2006-02)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Lawn Tractor Mandrel HUS-587819701

Bolt.Shoulder.3/8-16X3-5/8 HUS-596434404

Bolt Washer Assembly 7/16-20 HUS-532193003

Screw HUS-584953901

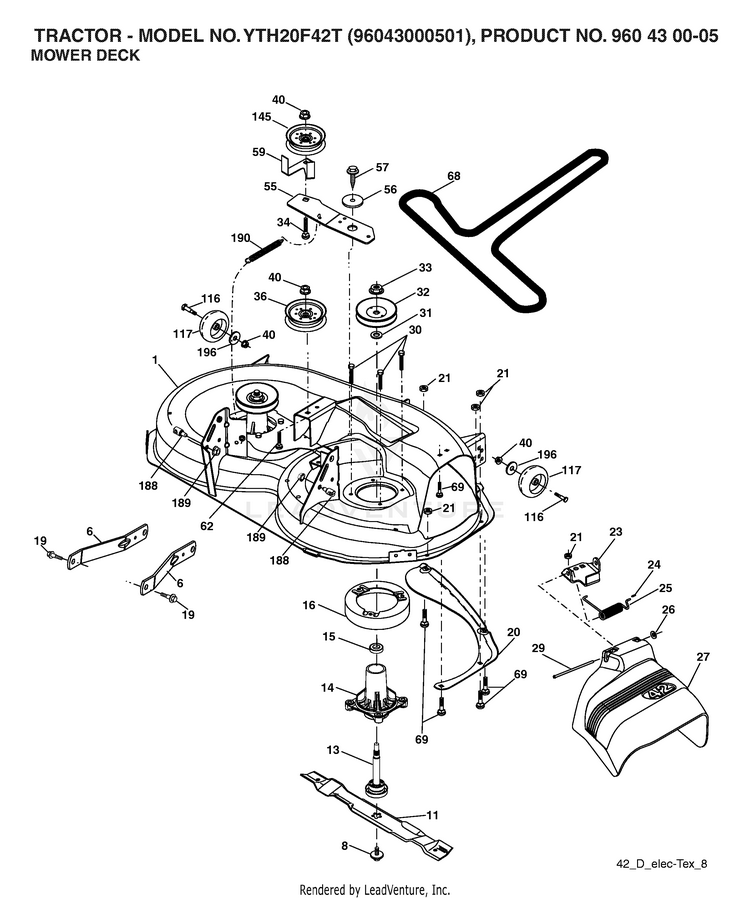

MOWER DECK / CUTTING DECK

145

PULLEY.IDLER.FLAT HUS-532177968

189

GSPW Nuts HUS-596135701

14

KIT.MANDREL.NONGREASE.TALL HUS-587819701

15

BEARING HUS-532110485

30

BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901

33

Nuts HUS-596134801

36

PULLEY.IDLER.2006 HUS-532196106

- -

KIT.MANDREL.NONGREASE.TALL HUS-587819701

23

BRKT.DEFLECTOR.38"2005+ HUS-532192557

20

SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001

19

BOLT.SHOULDER HUS-532196539

29

Rods HUS-595297001

59

SERVICE KIT GUARD HUS-531165901

190

SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251

- -

BLADE.42"MULCH.PREMIUM HUS-594893101

25

SPRING.TORSION.DEFLECT HUS-532197026

6

SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401

24

CAP-SLEEVE LT HUS-532105304

34

GSPW Bolts HUS-596136101

55

SERVICE KIT IDLER.ARM HUS-531169401

68

BELT V SECONDARY HUS-532144959

32

PULLEY MANDREL HUS-532173436

188

STUD.W/"D"ANTI-ROTATION HUS-593824001

11

42" HI-LIFT BLADE HUS-532138971

13

KIT.MANDREL.NONGREASE.TALL HUS-587819701

27

SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004

21

Hardware HUS-596040501

8

BOLT.WASHER.ASM.7/16-2 HUS-532193003

26

NUT PUSH M HUS-532110452

57

SCREW 3/8-16X1 HUS-817000616

16

SERVICE KIT MANDREL STRIPPER HUS-531167701

- -

42" MULCH BLADE HUS-594892701

31

WASHER.SPACER.MANDREL HUS-532187690

1

Decks HUS-598602801

117

WHEEL.GAUGE.RALLY HUS-589527301

196

GSPH HUS-596134901

40

NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

69

Bolts HUS-596136401

56

SPACER.RETAINER HUS-532199092

62

Bolts HUS-596136301

116

Bolts HUS-596434404
