Husqvarna YTH20F42 T - 96043000501 (2006-02) Riding Tractor

Model: YTH20F42 T - 96043000501 (2006-02)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
9
Keepers HUS-596501502
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
21
Screws HUS-596437001
...
41
WASHER HUS-532126197
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
82
VALUE.OIL.DRAIN HUS-532428287
...
99
SHIELD.BROWNING/DEBRIS HUS-532194329
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
37
HOSE CLAMP HUS-532123487
...
90
SCREW 3/8-16X1 HUS-817000616
...
64
SCREW, 3/8-16X3/4 HUS-817000612
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
31
DECAL BTRY SYMBOLS HUS-532145005
...
95
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
15
TANK.FUEL.4GAL HUS-532193499
...
42
Washers HUS-596238901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
92
SCREW 3/8-16X1 HUS-817120616
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
94
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301

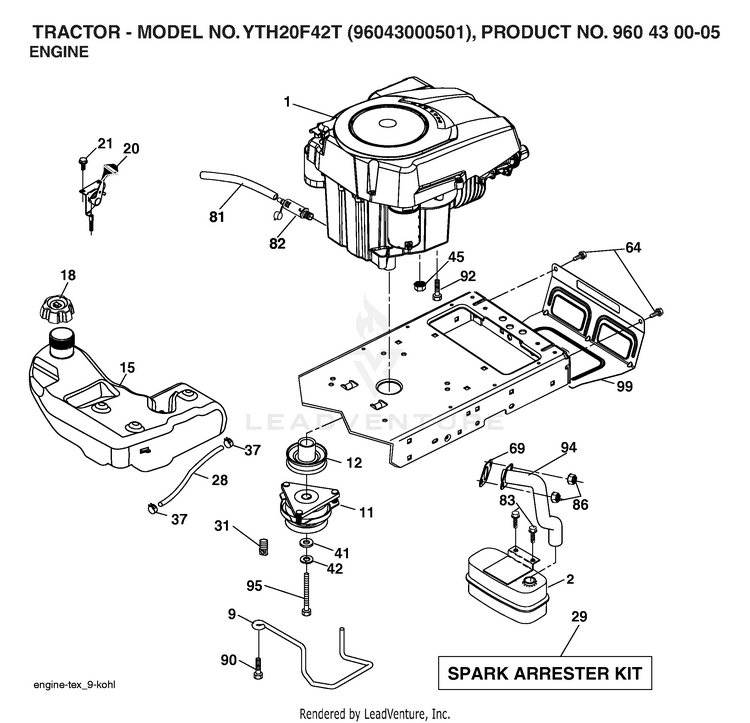

Schematic Image Zoomed
