Husqvarna YTH20F42 T - 917.279240 (2006-05) Riding Tractor

Model: YTH20F42 T - 917.279240 (2006-05)

Back To Assemblies

Save Part Not Listed?
product name

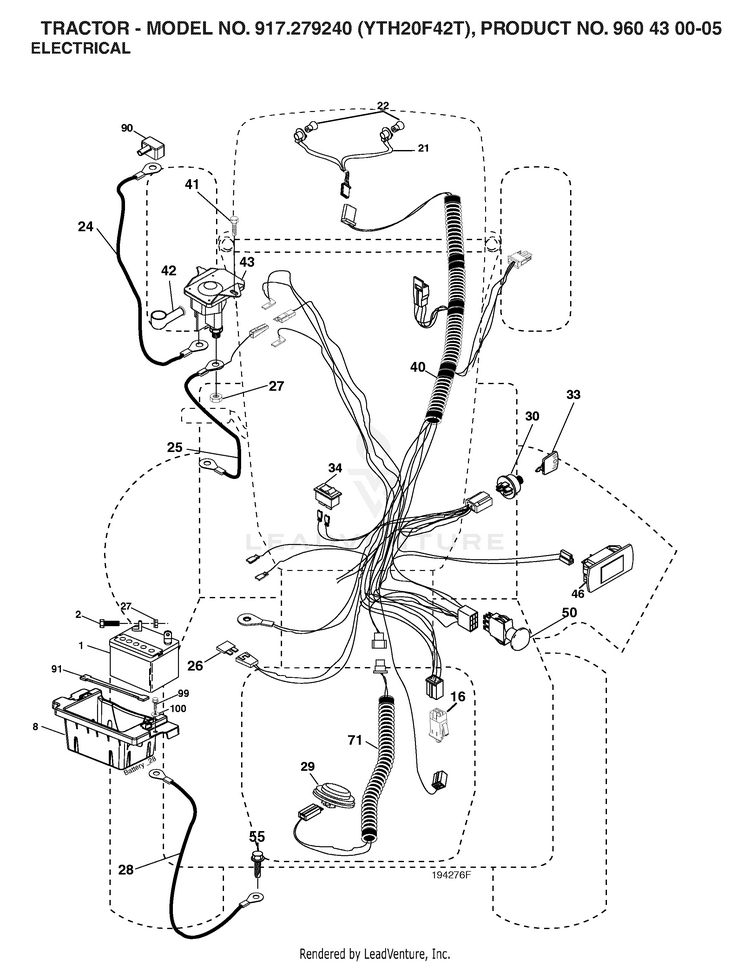

ELECTRICAL

...
...
8
BOX.BATTERY.MOUNT.FRONT.LT HUS-532186491
...
25
CABLE.START.RED.17.5". HUS-532198893
...
42
COVER.TERMINAL.RED HUS-532154336
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
22
LIGHTBULB HUS-532004152
...
41
Screws HUS-596437001
...
24
CABLE.FRBATT.W/WIRE.8GA.8 HUS-585555601
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
26
FUSE 20AMP HUS-532175158
...
34
SWITCH LT HUS-532110712
...
21
HARNESS ASSY LIGHT HUS-532183759
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS.IGN.DASH.HUQ/P HUS-532401104
...
90
COVER TERMINAL BATTERY HUS-532400274
...
43
Solenoids HUS-582042802
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
91
STRAP.BATTERY.MOUNT.FRONT(2 2) HUS-532190270
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
55
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
71
HARNESS-CHASSIS SUB HUS-532194276
...
28
CABLE GROUND 6 GA 21" 90T BLK HUS-532145491
...
100
Washers HUS-596135301
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
