Husqvarna YTH20B42 T - 96043002002 (2006-03) Riding Tractor

Model: YTH20B42 T - 96043002002 (2006-03)

Back To Assemblies

Save Part Not Listed?
product name

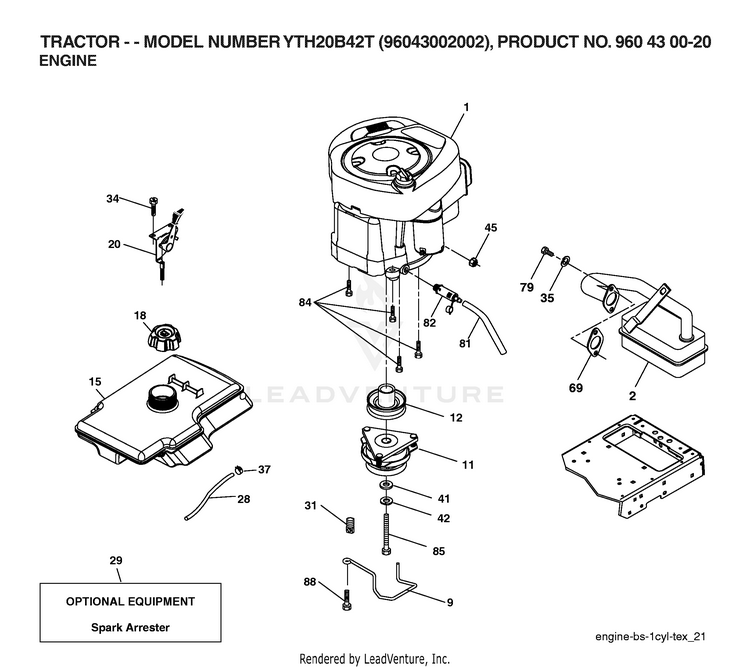

ENGINE

...
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
PUSH CLIP HUS-532145006
...
9
Keepers HUS-596501502
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
37
HOSE CLAMP HUS-532123487
...
35
WASHER HUS-810010500
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV HUS-532137352
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
15
TANK.ASM.FUEL.REAR.W/CAP.2.5 HUS-532194264
...
18
CAP.ASSY.FUEL.3".N-EPA.BLK.428 HUS-584248701
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
34
Screws HUS-596437001
...
42
Washers HUS-596238901
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
88
SCREW 3/8-16X1 HUS-817000616
...
84
SCREW.3/8-16 HUS-817060620
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
41
WASHER HUS-532126197
...
82
VALUE.OIL.DRAIN HUS-532428287
...
79
Screws HUS-596134201
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
