Husqvarna YTH2046 - 954567079 (2001-01) Riding Tractor

Model: YTH2046 - 954567079 (2001-01)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

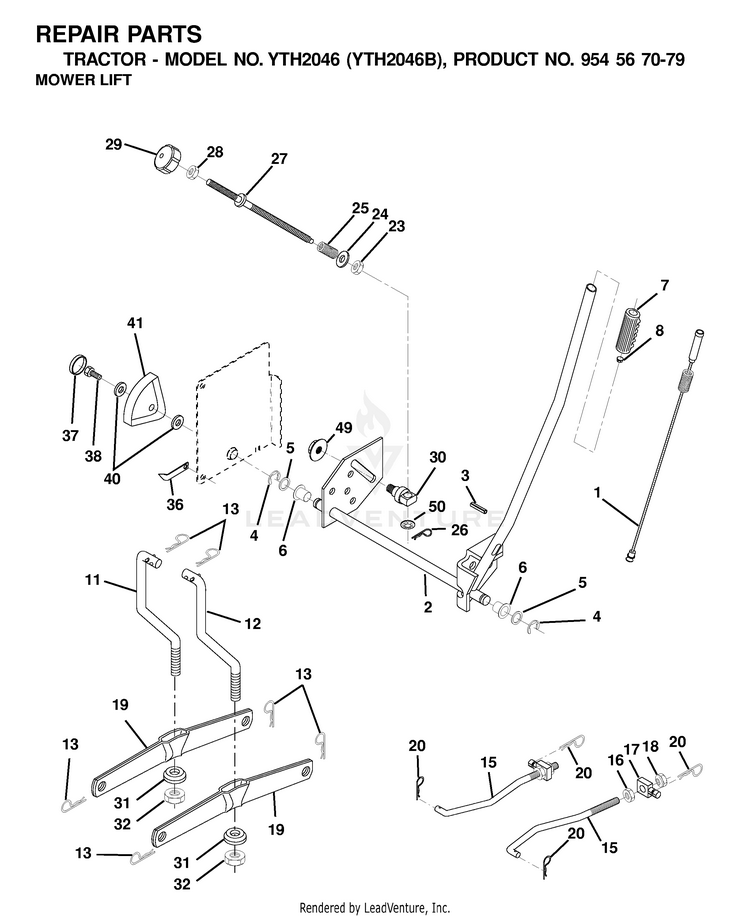

MOWER LIFT / DECK LIFT

...
...
4
RETAINING RING LT HUS-812000002
...
37
PLUG,HOLE HUS-532123935
...
27
ROD ADJ LIFT HUS-532126971
...
23
NUT T HUS-532110807
...
17
TRUNNION HUS-532175689
...
20
SPRING RETAINER HUS-532003146
...
50
NUT PUSH M HUS-532110452
...
7
GRIP HANDLE HUS-532125631
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
16
Nuts HUS-596433401
...
38
Screws HUS-593337601
...
2
SERVICE KIT SHAFT ASM RH HANDL HUS-529845601
...
3
PIN GROOVE. HUS-532105767
...
41
IND. HEIGHT STLT HUS-532155098
...
15
LINK.SUSPENSION.FRONT HUS-532173288
...
30
TRUNNION HUS-532150233
...
40
WASHER HUS-819112410
...
6
BEARING.NYLON HUS-532120183
...
26
GSPW Retainers HUS-596029401
...
24
WASHER HUS-819131016
...
29
KNOB INF 3/8-16 HUS-532138057
...
1
WIRE ASM INNER W/ PLUNGER LT HUS-532159460
...
18
GSPW NUTS HUS-596135601
...
36
POINTER, HEIGHT INDICATOR(2 2) HUS-532155097
...
5
WASHER HUS-819211621
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
8
PLUNGER BUTTON KIT HUS-532125925
...
11
LIFT LINK LH HUS-532145537
...
13
RETAINER-SPRNG RB HUS-532124670
...
12
LIFT LINK RH HUS-532145536
...
19
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
25
SPRING HUS-532002876
...
...
...
