Husqvarna YTH2042 - 96043009202 (2010-04) Riding Tractor

Model: YTH2042 - 96043009202 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

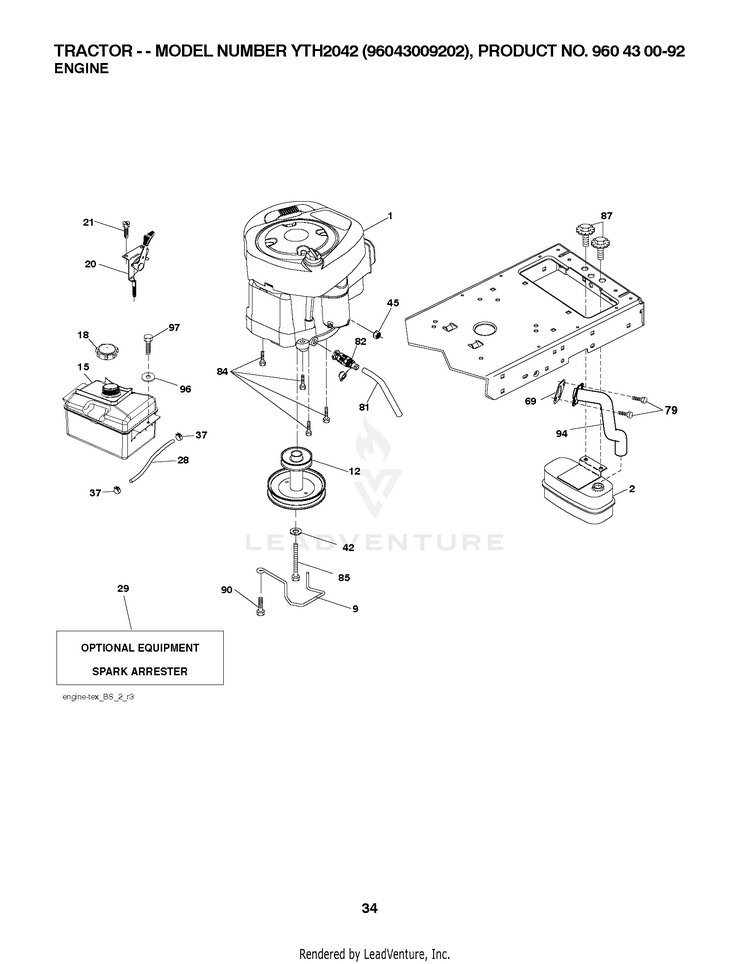

ENGINE

...
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
21
Screws HUS-596321701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
82
VALUE.OIL.DRAIN HUS-532428287
...
12
ENGINE.PULLEY HUS-586478501
...
37
HOSE CLAMP HUS-532123487
...
42
Washers HUS-596238901
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.22" HUS-587044822
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
1
ENGINE BRIGGS MODEL 3317-1372-G1 HUS-000000000
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
15
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
90
SCREW 3/8-16X1 HUS-817000616
...
96
Washers HUS-596135301
...
84
SCREW.3/8-16 HUS-817060620
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
79
Screws HUS-596134201
...
94
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
9
Keepers HUS-596501502
