Husqvarna YTH2042 - 96041005400 (2007-04) Riding Tractor

Model: YTH2042 - 96041005400 (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

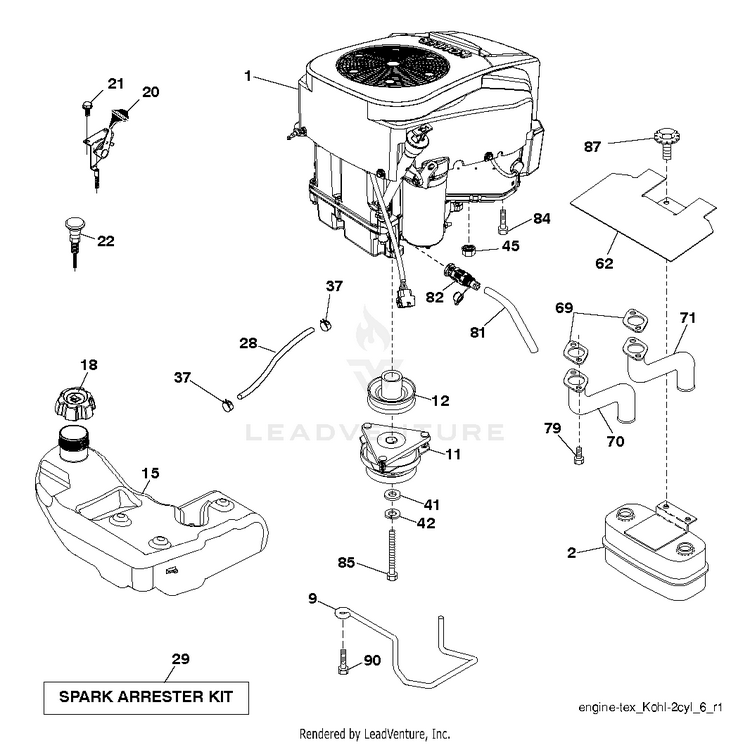

ENGINE

...
...
87
BOLT.5/16-18UNCX1.W/SEMS.BLK HUS-532198239
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
84
SCREW 3/8-16X1 HUS-817120616
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
42
Washers HUS-596238901
...
90
SCREW 3/8-16X1 HUS-817000616
...
82
VALUE.OIL.DRAIN HUS-532428287
...
9
Keepers HUS-596501502
...
79
Screws HUS-596134201
...
1
ENGINE KOHL MODEL NO. SV710-0021 (409900) HUS-000000000
...
41
WASHER HUS-532126197
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
70
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
15
TANK.FUEL.4GAL HUS-532193499
...
21
Screws HUS-596321701
...
20
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
69
EXHAUST SHROUDS HUS-532186854
...
37
HOSE CLAMP HUS-532123487
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
71
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
