Husqvarna YTH1942 - 96048010200 (2021-7) Riding Tractor

Model: YTH1942 - 96048010200 (2021-7)

Back To Assemblies

Save Part Not Listed?
product name

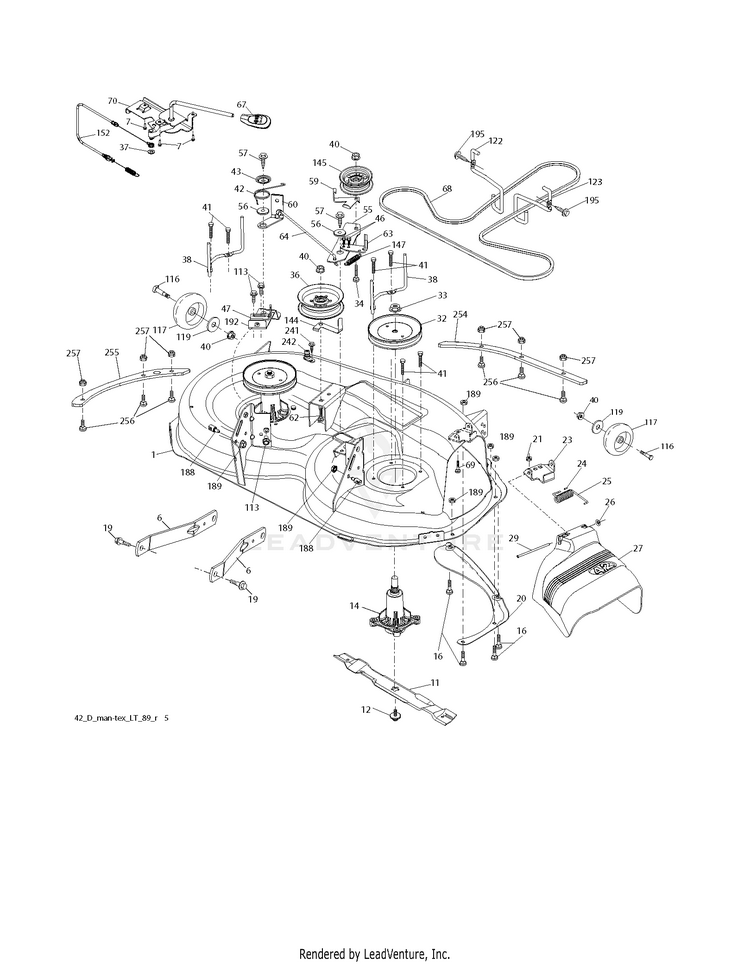

MOWER DECK / CUTTING DECK

...
...
123
SERVICE KIT KEEPER BELT KEEPER RH HUS-531169701
...
--
Decks HUS-598602801
...
63
ARM.BRAKE.ZINC HUS-532199478
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
122
SERVICE KIT BELT KEEPER LH HUS-531169501
...
34
GSPW Bolts HUS-596136101
...
59
SERVICE KIT GUARD HUS-531165901
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
43
SRPING.TORSION.RETAINE HUS-532197256
...
68
Belts HUS-598559101
...
256
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
254
PLATES.RENFRC.42DECK.PT431FRNT HUS-585316805
...
55
SERVICE KIT IDLER.ARM.42" HUS-531171201
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
242
PORT.WASHOUT HUS-532415598
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
xx
COUPLING.QUICK CONNECT HUS-532416405
...
29
Rods HUS-595297001
...
189
GSPW Nuts HUS-596135701
...
36
PULLEY.IDLER.2006 HUS-532196106
...
62
Bolts HUS-596136301
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
19
BOLT.SHOULDER HUS-532196539
...
116
Bolts HUS-596434402
...
119
GSPH HUS-596134901
...
42
SPRING.TORSION.BRAKE HUS-532198410
...
33
Nuts HUS-596134801
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
69
Bolts HUS-596136401
...
7
Screws HUS-596321701
...
32
PULLEY.MANDREL.5.438.P HUS-532195945
...
47
BRKT.CLUTCH.CABLE HUS-532197250
...
64
LINKAGE.BRAKE.ASM.ZINC HUS-532199918
...
113
BOLT.5/16HEX.WHS.HD HUS-817000510
...
57
SCREW 3/8-16X1 HUS-817000616
...
152
CABLE.MECHANICAL.CLUTCH HUS-584243501
...
38
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
195
SCREW, 3/8-16X3/4 HUS-817000612
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
147
RETURN SPRING HUS-532401971
...
117
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
192
SERVICE KIT BRACKET BRKT.BRAKE LH HUS-531152801
...
60
ARMS HUS-597074201
...
255
PLATES.RENFRCE.42DECK.X431SIDE HUS-585317005
...
24
CAP-SLEEVE LT HUS-532105304
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
26
NUT PUSH M HUS-532110452
...
11
42" HI-LIFT BLADE FOR BAGGING OR DISCHARGING HUS-532138971
...
144
SERVICE KIT BELT KEEPER HUS-531169801
...
1
Decks HUS-598602801
...
27
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
70
CLUTCH.ASM.MANUAL.YT.PREDATORQ HUS-532199972
...
16
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
56
SPACER.RETAINER HUS-532199092
...
21
Hardware HUS-596040501
...
257
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
