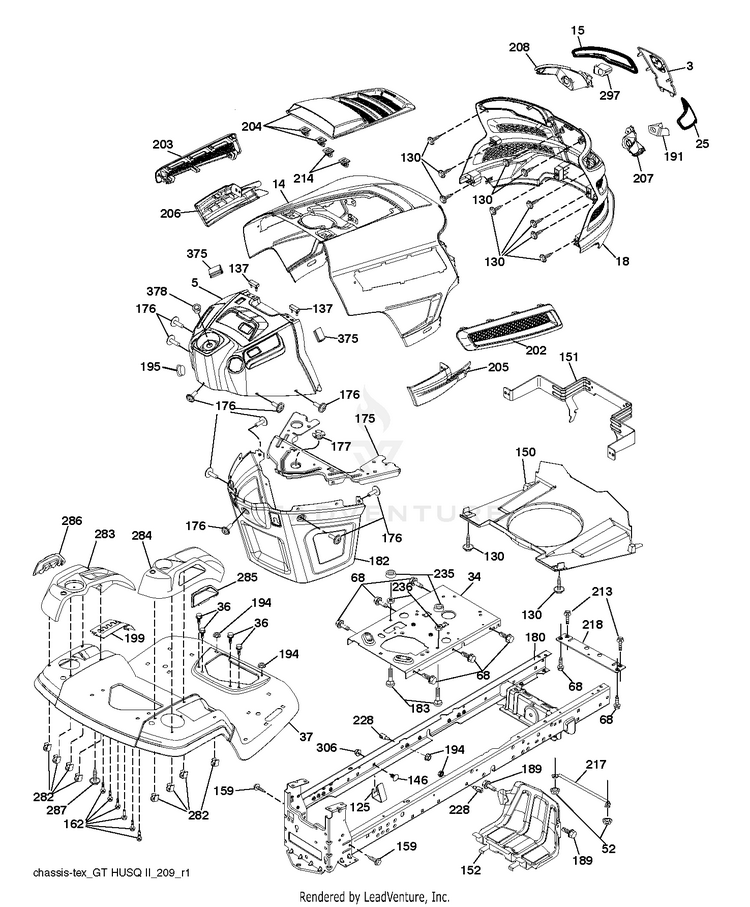

Husqvarna YTH1942 - 96048010200 (2021-7) Riding Tractor

Model: YTH1942 - 96048010200 (2021-7)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS & ENCLOSURES

...
...
284
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
378
BUSHING FLANGE; PLASTIC HUS-590849801
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
150
AIR DUCT.GTV2(1.66"RING HEIGHT HUS-532439731
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
194
GSPW Nuts HUS-596135701
...
68
Screws HUS-596030701
...
283
CONSOLE.ASM.LFT.RSF.HUSQ.LT HUS-532439151
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
180
KITS.CHASSIS.WELD.SERVICE HUS-579841501
...
130
Screws HUS-596321701
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
52
Hardware HUS-596040501
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
183
Screws HUS-595305701
...
5
DASHBOARD.UPPER.ASM.GT2.X498 HUS-590748818
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
37
FENDER.TLT.FS.W/CUPHLD.ORANGE HUS-532441266
...
182
DASH LOWER.HUSQ.PRED NO CRUISE HUS-586738602
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
25
LENS.HEADLIGHT.RH.GTII.2011 RH HUS-532443385
...
15
LENS.HEADLIGHT.LH.GTII.2011 LH HUS-532439733
...
162
Screws HUS-596134101
...
285
CONSOLE INSERT RH HUS-532416315
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
235
Spacers HUS-596564201
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
18
Grilles HUS-597247201
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
287
SCREW 1/4X20 HUS-817600406
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
----
PLUG.TEX.DASH.SVC.MINDER.GREY HUS-532439976
...
217
ROD.PIVOT.HOOD HUS-532409167
...
177
BUSHING STEERING HUS-532195228
...
137
BUMPER DASH HUS-532407590
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
125
CLIP.FUEL.LINE HUS-581684801
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
159
SCREW, 3/8-16X3/4 HUS-817000612
