Husqvarna YTH190 - 954001972A (1995-03) Riding Tractor

Model: YTH190 - 954001972A (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS & ENCLOSURES

...
...
17
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
94
WASHER LT HUS-532110357
...
80
LATCH.HOOD. HUS-532109808
...
111
Bolts HUS-595901101
...
66
PLATE, SILKSCR. HUS-532140130
...
87
PANEL LH HUS-532140676
...
33
FOOT REST LH HUS-532147203
...
98
SUPPORT LH YTH HUS-532110852
...
16
Hardware HUS-596040501
...
72
SUPPORT ASS'Y HUS-532124574
...
39
BRACKET RH PIVOT HUS-532139887
...
43
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
14
Bolts HUS-596564001
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
11
PANEL DASH LT HUS-532145218
...
8
CLIP,INSULATOR HUS-532126471
...
9
DASH HUS-532140452
...
1
CHASSIS WELD 11GA.95 HUS-532145501
...
64
DASH LOWER LT HUS-532150272
...
112
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
42
LENS LH HUS-532157068
...
46
RETAINER HUS-532127316
...
30
FENDER YT/GT HUS-532167270
...
69
STRAP ASSY LT HUS-532106784
...
59
SNAP BUSHING T HUS-532009151
...
31
BRACKET ASM., FENDER HUS-532183569
...
xx
PLUG-DASH T HUS-532125085
...
44
STRAP HUS-532140675
...
25
GSPH HUS-596134901
...
35
Bolts HUS-596136001
...
84
WASHER HUS-819070818
...
129
Washers HUS-596582301
...
70
STRAP ASSY LT HUS-532104618
...
86
SIDE PANEL RH HUS-532140677
...
81
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
74
Nuts HUS-596322601
...
28
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
93
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
36
PAL NUT LT HUS-532108067
...
10
Bolts HUS-596728201
...
47
NUT-PUSH YT HUS-532105531
...
97
SUPPORT RH YTH HUS-532110853
...
15
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
109
BUMPER BRACKET HUS-532170310
...
83
SPACER LT HUS-532007206
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
xx
COVER ACCESS HUS-532121794
...
85
NUT HUS-873271000
...
24
Bolts HUS-596564401
...
50
DASH SUPT YP HUS-532145205
...
67
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
6
SADDLE LT FENDER HUS-532145206
...
56
DASH EXT PNT HUS-532145151
...
90
Washers HUS-596204201
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
92
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
13
PANEL DASH RH HUS-532145217
...
26
Nuts HUS-596322601
...
75
BOLT HUS-532007605
...
78
LOCKWASHER #10 HUS-810071000
...
110
PLUG PLASTIC HUS-532143679
...
79
Nuts HUS-596987401
...
38
BRACKET LH PIVOT HUS-532139886
...
82
SCREW.PAN.HEAD HUS-874981024
...
95
SNAP CAP LT HUS-532110356
...
29
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
77
SCREW.PNHD.10-24 HUS-871191008
...
34
FOOTREST LT/YT/GT RH HUS-532145243

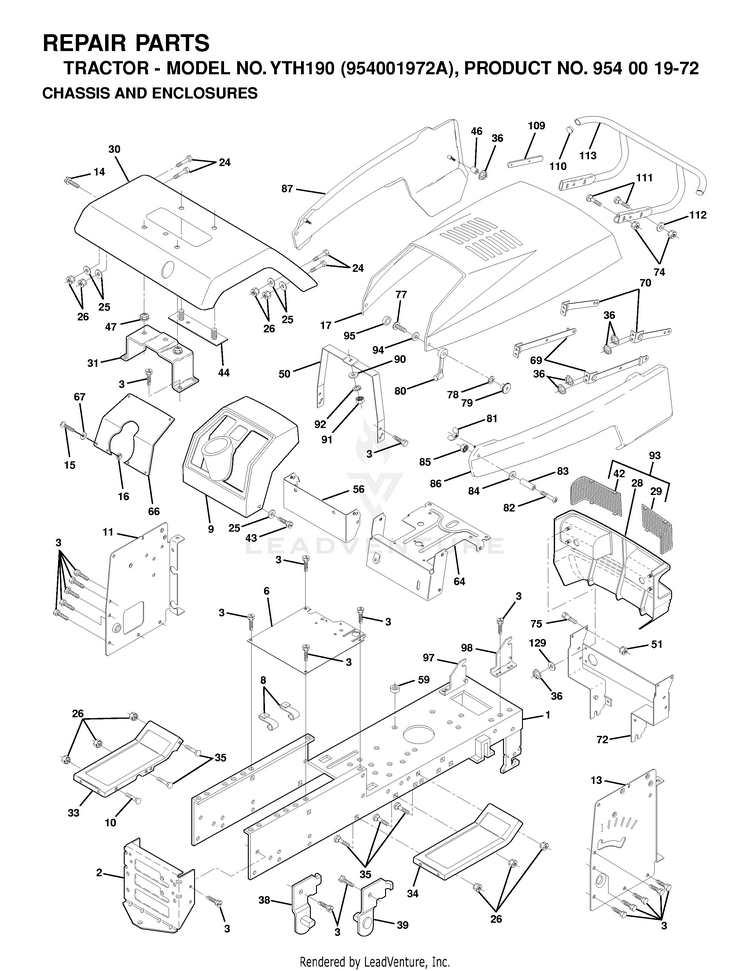

Schematic Image Zoomed
