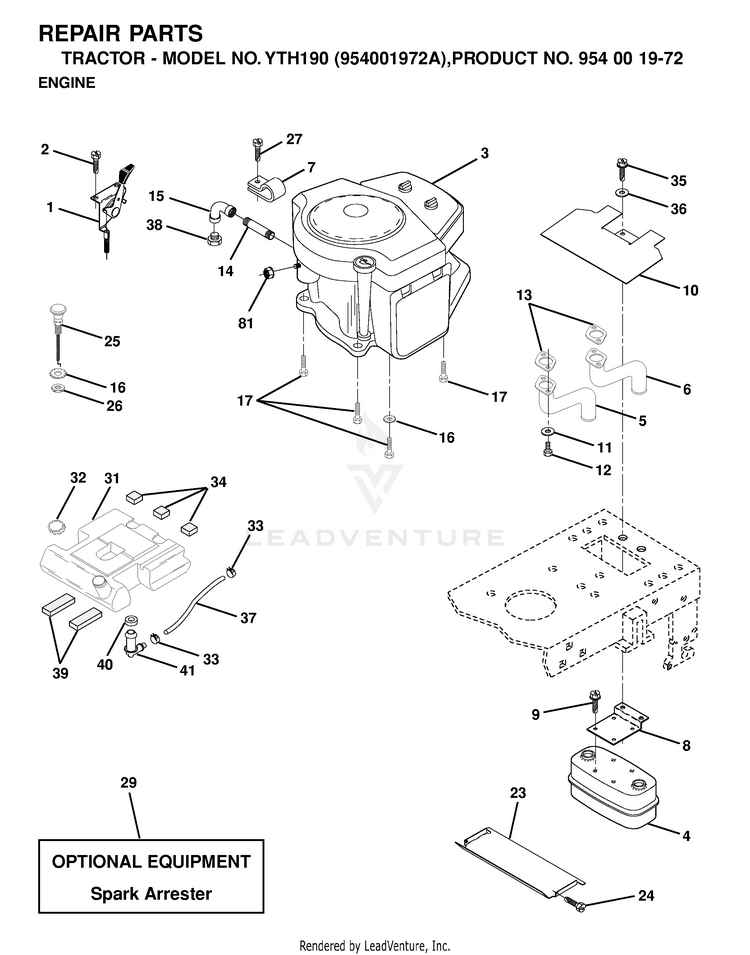

Husqvarna YTH190 - 954001972A (1995-03) Riding Tractor

Model: YTH190 - 954001972A (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
9
Screws HUS-596437001
...
26
NUT HUS-873610600
...
31
FUEL TANK 3.5G HUS-532151346
...
6
EXHAUST ASM. RIGHT HUS-532144068
...
10
SHIELD HEAT LT HUS-532145552
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
2
Bolts HUS-596582501
...
34
PAD-SPACER LT HUS-532106082
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
8
BRACKET MUFFLER HUS-532122439
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
33
HOSE CLAMP HUS-532123487
...
1
CONTROL.THROT.RH.BLK.FLG.44.75 HUS-532132748
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
27
SCREW HUS-817541008
...
39
PAD IDLER TI HUS-532109227
...
5
EXHAUST ASM. LEFT HUS-532144069
...
23
HEAT SHIELD HUS-532128953
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
14
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-813280336
...
11
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
40
BUSHING OUTLET T HUS-532003645
...
16
Washers HUS-596238701
...
12
Screws HUS-596230901
...
24
SCREW HUS-817021008
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
15
VALUE.OIL.DRAIN HUS-532428287
...
25
CONTROL.CHOKE.51.00.BLK.W/BEND HUS-532138672
...
36
GSPH HUS-596134901
...
7
CLAMP HUS-532138129
...
41
STEM FUEL TANK HUS-532139277
