Husqvarna YTH18K46 - 96043021800 (2015-11) Riding Tractor

Model: YTH18K46 - 96043021800 (2015-11)

Back To Assemblies

Save Part Not Listed?
product name

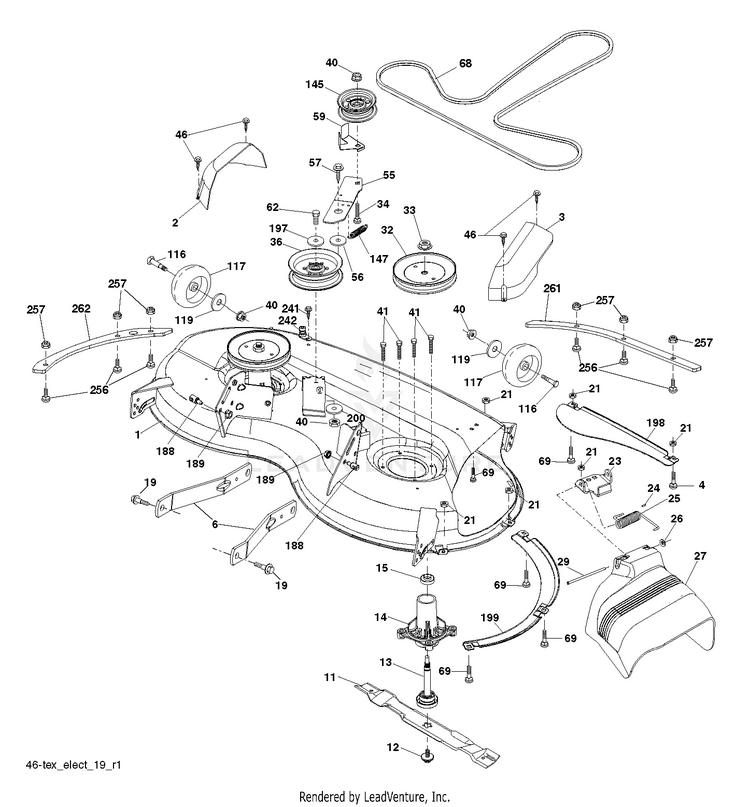

MOWER DECK / CUTTING DECK

...
...
26
NUT PUSH M HUS-532110452
...
198
SERVICE KIT BAFFLE CENT HUS-531170601
...
11
46" HIGH LIFT BLADE HUS-594892801
...
116
Bolts HUS-596434404
...
33
Nuts HUS-596134801
...
21
Hardware HUS-596040501
...
257
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
19
BOLT.SHOULDER HUS-532196539
...
xx
KIT.MANDREL.NONGREASE.TALL MANDREL ASSEMBLY (Includes Housing (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-587819701
...
xx
COUPLING.QUICK CONNECT NOT SHOWN HUS-532416405
...
1
KIT.SVC.DECK.WELD.46.TEX_668 HUS-547746001
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
xx
KIT.SVC.DECK.WELD.46.TEX_668 NOT SHOWN HUS-547746001
...
256
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
3
COVER.MANDREL.RH.46" LH HUS-532405506
...
200
Washers HUS-596135501
...
27
SHIELD.DEFLECTOR.MOWER.46"BLAC HUS-532405357
...
62
Bolts HUS-596564404
...
2
COVER.MANDREL.LH.46" RH HUS-532405507
...
119
GSPH HUS-596134901
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
147
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
15
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
12
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
24
CAP-SLEEVE LT HUS-532105304
...
189
GSPW Nuts HUS-596135701
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
197
GSPH HUS-596134901
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
261
PLATE.REINF.DECK.46".FRONT.BLK HUS-589481805
...
32
PULLEY.MANDREL.5.438.P HUS-532195945
...
34
GSPW Bolts HUS-596136101
...
199
SERVICE KIT BAFFLE FRONT RH HUS-531170701
...
57
SCREW 3/8-16X1 HUS-817000616
...
56
SPACER.RETAINER HUS-532199092
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
4
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
242
PORT.WASHOUT HUS-532415598
...
29
Rods HUS-595297001
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
36
PULLEY.IDLER.2006 HUS-532196106
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
262
PLATE.REINF.DECK.46".SIDE.BLK HUS-589482005
...
69
Bolts HUS-596136401
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
59
SERVICE KIT GUARD 94 HUS-531165901
...
68
V-BELT.DRIVE.MWR.MECHANICL.46" HUS-584453101
