Husqvarna YTH18K42 - 96043025100 (2017-09) Riding Tractor

Model: YTH18K42 - 96043025100 (2017-09)

Back To Assemblies

Save Part Not Listed?
product name

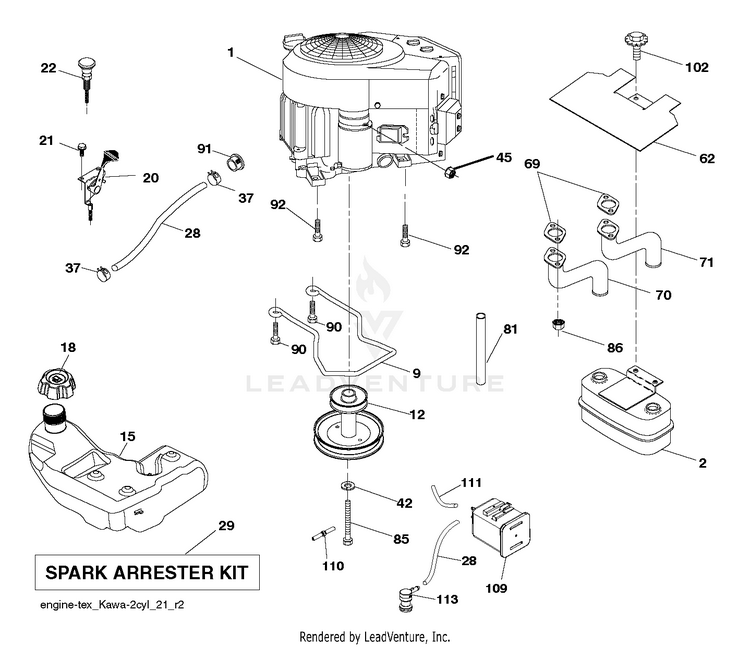

ENGINE

...
...
113
VALVES HUS-597791601
...
110
VALVE.ASM.ANTI-SLOSH HUS-532414118
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
91
BUSHING.1.375OD HUS-532187495
...
12
ENGINE.PULLEY HUS-586478501
...
109
CANNISTER, CARBON HUS-532414114
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
1
ENGINE B&S MODEL NO. 44N677-0005-G1 (587639101) HUS-000000000
...
71
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
90
SCREW 3/8-16X1 HUS-817000616
...
21
Screws HUS-596321701
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
92
SCREW 3/8-16X1 HUS-817120616
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
69
GASKET HUS-532178151
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
70
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
111
Hoses HUS-587044580
...
15
TANK ASSY W/CAP 3 GAL CARB Fits 2.75" filler neck HUS-529999102
...
42
Washers HUS-596238901
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
37
HOSE CLAMP HUS-532123487
...
9
Keepers HUS-596501502
