Husqvarna YTH18542 - 96045005900 (2017-06) Riding Tractor

Model: YTH18542 - 96045005900 (2017-06)

Back To Assemblies

Save Part Not Listed?
product name

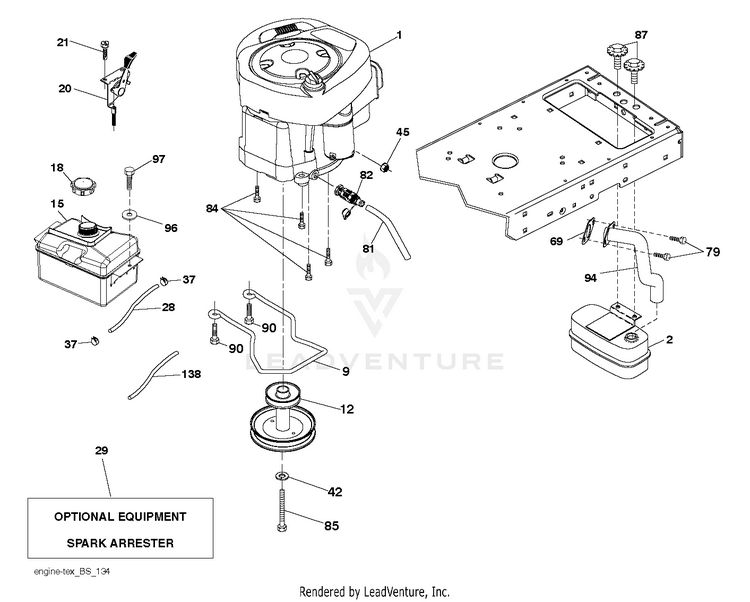

ENGINE

...
...
45
Hardware HUS-596133601
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
90
SCREW 3/8-16X1 HUS-817000616
...
79
Screws HUS-596134201
...
84
SCREW.3/8-16 HUS-817060620
...
37
HOSE CLAMP HUS-532123487
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
18
CAP.FUEL.2 WAY VENT HUS-581176101
...
12
ENGINE.PULLEY HUS-586478501
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
96
Washers HUS-596135301
...
94
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
138
Hoses HUS-587044580
...
42
Washers HUS-596238901
...
82
VALUE.OIL.DRAIN HUS-532428287
...
9
Keepers HUS-596501502
...
1
ENGINE B&S MODEL NO. 31R777-0003-G1 (585564601) HUS-000000000
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.22" HUS-587044822
...
21
Screws HUS-596321701
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
15
FUEL TANK ASSEMBLY 2.5 GAL HUS-597954504
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
