Husqvarna YTH18542 - 917279060 (2005-03) Riding Tractor

Model: YTH18542 - 917279060 (2005-03)

Back To Assemblies

Save Part Not Listed?
product name

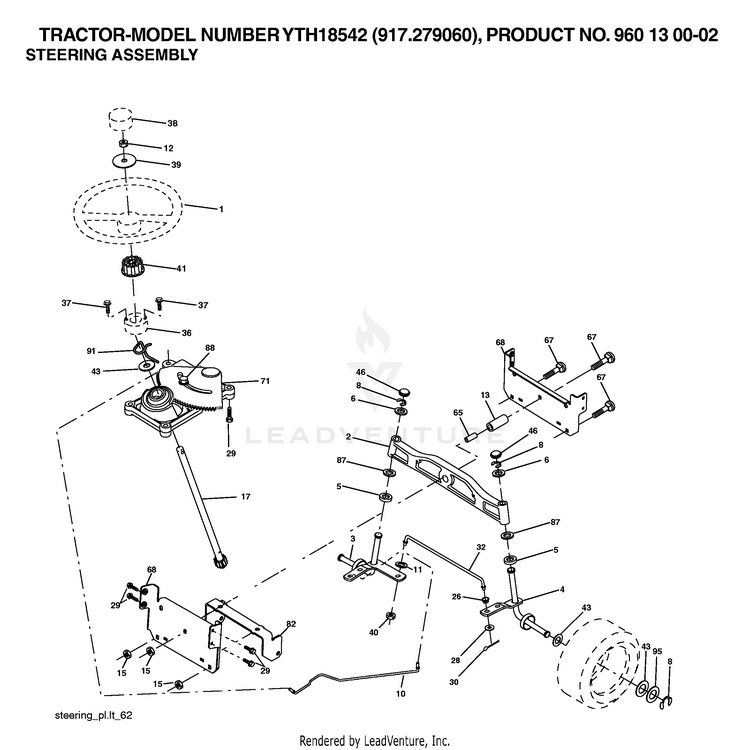

STEERING 2

...
...
36
KIT.BUSHING.STEERING. HUS-532155108
...
67
BOLT CARRIAGE HUS-872110618
...
1
WHEEL.STEERING.LEGND2.GRY HUS-532186093
...
40
NUT CROWNLOCK 3/8-24 HUS-873540600
...
6
WASHER HUS-532121748
...
2
AXLE.ASM.LT.CAST.LGHTWGHT HUS-532193542
...
30
Pins HUS-596029501
...
71
SERVICE KIT STEERING ASM HUS-531167801
...
43
WASHER HUS-532121749
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
28
WASHER HUS-819131414
...
39
WASHER 9/16"ID, 2 3/8"OD HUS-819183812
...
13
TUBE, PIVOT AXLE HUS-532136518
...
17
SHAFT ASM STRG HUS-532177883
...
38
INSERT.CAP.STRG.WH.GRAY HUS-532193652
...
91
CLIP.STEERING HUS-532175553
...
65
SPACER.BRACE.AXLE HUS-532414736
...
12
NUT.HEX.1/2-20 HUS-873940800
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
87
WASHER, FLAT .781 X 1 1/2" HUS-532173966
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
82
SERVICE.KIT BRACKET HUS-531170201
...
95
WASHER.HARDENED HUS-532188967
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
5
WASHER THRUST HUS-532006266
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
10
DRAGLINK.15".TIRES.2001 HUS-532175121
...
8
RING CLIP HUS-812000029
...
88
BOLT, SHOULDER 7/16-20 HUS-532175118
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
11
Washers HUS-596238701
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
