Husqvarna YTH1842 - 243820 (2017-12) Riding Tractor

Model: YTH1842 - 243820 (2017-12)

Back To Assemblies

Save Part Not Listed?
product name

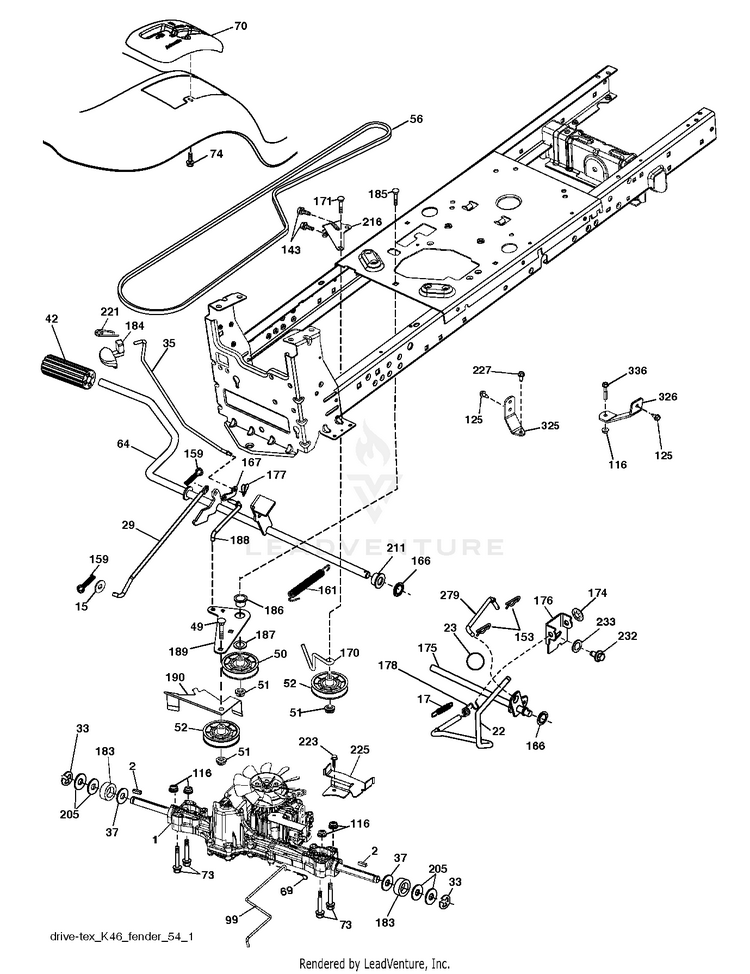

DRIVE 2

...
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
33
E-RING LT HUS-812000001
...
116
GSPW Nuts HUS-596135701
...
325
BRACKET TORQUE STRAP HUS-585668505
...
232
Bolts HUS-596238601
...
69
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
174
NUT.PUSH.500.2006 HUS-532197289
...
183
SPACER AXLE HUS-532137057
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
74
Screws HUS-596134101
...
99
ARM.PIVOTING.TCRD.GEN2.5.BAGGE HUS-582404501
...
233
Washers HUS-596135201
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
326
BRACKET TORQUE STRAP HUS-585670803
...
1
Transaxle, Tufftorq K46BA (532448348) HUS-000000000
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
42
PAD, FOOT PEDAL HUS-510089501
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
185
BOLT HUS-872110622
...
37
WASHER.HARDENED HUS-532188967
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
205
WASHER HUS-532121748
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
186
SPACER.RETAINER HUS-532194321
...
70
CONSOLE.SHIFT.STL.HYD.TEX.GREY HUS-532439971
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
22
ROD.SHIFT.FENDER.TLT.2006 HUS-532197660
...
187
Washers HUS-596135501
...
56
Belts HUS-592855201
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
279
LINK.SHIFT.T/A.K46.FEND.TX HUS-532406207
...
143
Screws HUS-596030701
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
35
ROD ROD.PARKINGBRAKE.GT.HUSQ/P HUS-590605902
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
171
Bolts HUS-596136301
...
177
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
2
SQUARE KEY HUS-532123583
...
223
BOLTS HUS-598662601
...
336
Bolts HUS-587259602
...
175
SHAFT ASM SHIFT HUS-532406208
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
29
ROD.BRAKE.K46 HUS-532403806
...
161
SPRING, RETURN LT HUS-532105709
...
159
Pins HUS-596029501
...
49
Bolts HUS-596136201
...
73
Bolts HUS-596136501
...
166
NUT.PUSH.625 HUS-532429164
...
153
RETAINER M HUS-532004497
...
227
Bolts HUS-596135901
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
