Husqvarna YTH1842 - 243820 (2017-12) Riding Tractor

Model: YTH1842 - 243820 (2017-12)

Back To Assemblies

Save Part Not Listed?
product name

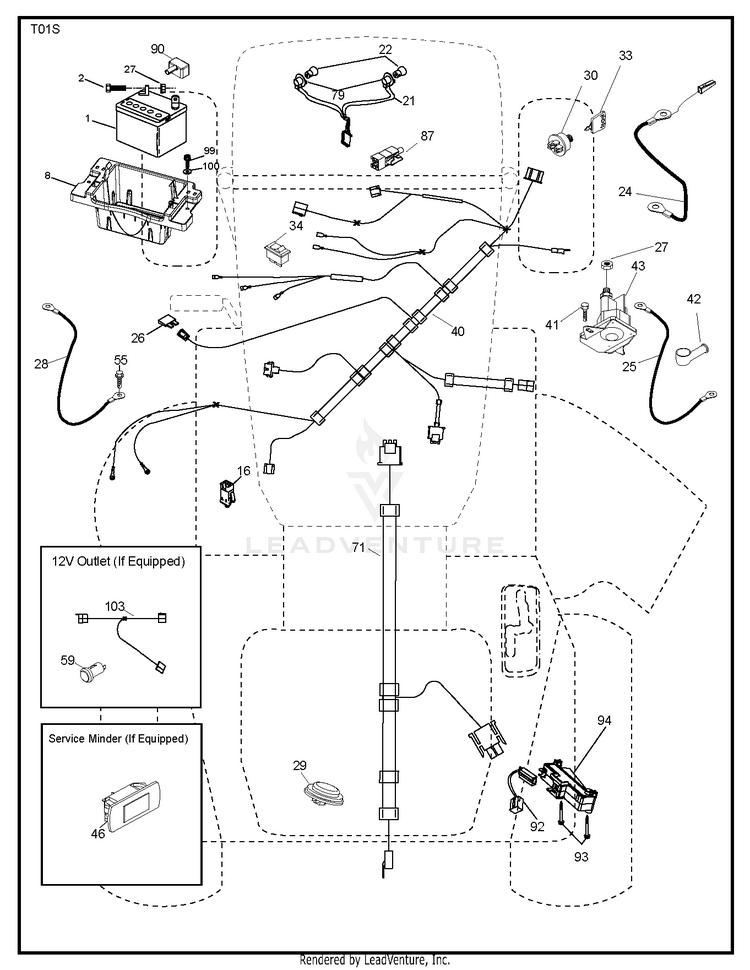

ELECTRICAL 2

...
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
25
CABLE.STARTER.8GA.17.5 HUS-585555501
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
41
Screws HUS-596437001
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
8
TRAY.ASM.BATTERY.FRT.TEX.CARB HUS-532414126
...
87
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
43
Solenoids HUS-582042802
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
42
COVER.TERMINAL.RED HUS-532154336
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
34
SWITCH LT HUS-532110712
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
93
Bolts HUS-596039601
...
100
Washers HUS-596135301
...
24
CABLE.FRBATT.W/WIRE.8GA.8 HUS-585555601
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
28
CABLE.GROUND.21"BLK.8GA.90T HUS-532416588
...
94
MODULE.REVERSE.ROS HUS-532191834
...
71
HARNESS-CHASSIS SUB HUS-532194276
...
79
BULB HOLDER ASM. HUS-532175242
...
40
HARNESS.IGN.DASH.CBL.YTGT.PRED HUS-501133001
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
27
Hardware HUS-596133601
...
22
LIGHTBULB HUS-532004152
...
26
FUSE 20AMP HUS-532175158
