Husqvarna YTH183 T - 96041019500 (2010-10) Riding Tractor

Model: YTH183 T - 96041019500 (2010-10)

Back To Assemblies

Save Part Not Listed?
product name

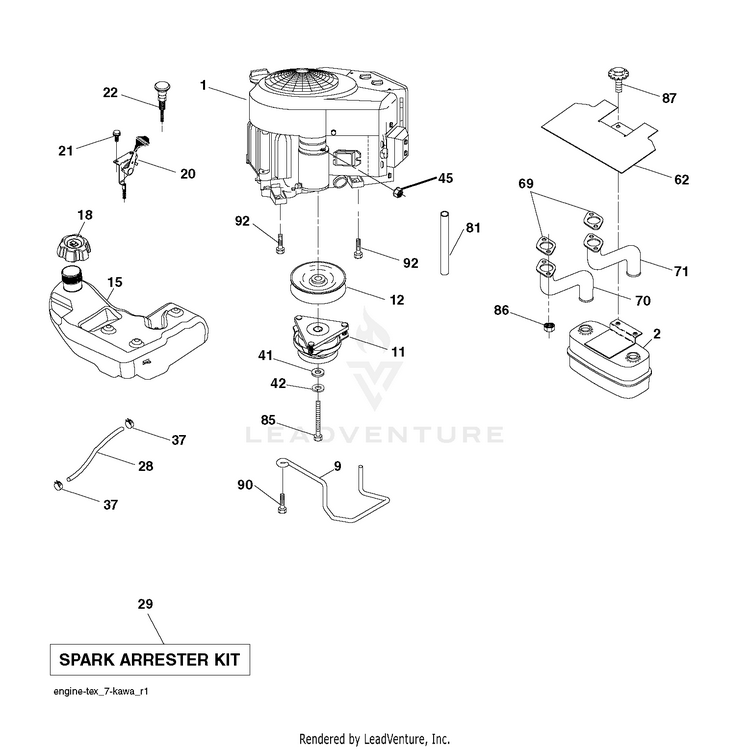

ENGINE

...
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
9
Keepers HUS-596501502
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
90
SCREW 3/8-16X1 HUS-817000616
...
92
SCREW 3/8-16X1 HUS-817120616
...
21
Screws HUS-596321701
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
1
ENGINE KAWA MODEL NO. FS541V-AS51 (437950) HUS-000000000
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
37
HOSE CLAMP HUS-532123487
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
69
GASKET HUS-532178151
...
20
CONTROL.THROTTLE.BLACK HUS-532175437
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
15
TANK.FUEL.4GAL HUS-532193499
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
