Husqvarna YTH180 - HCYTH180C (1997-01) Riding Tractor

Model: YTH180 - HCYTH180C (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

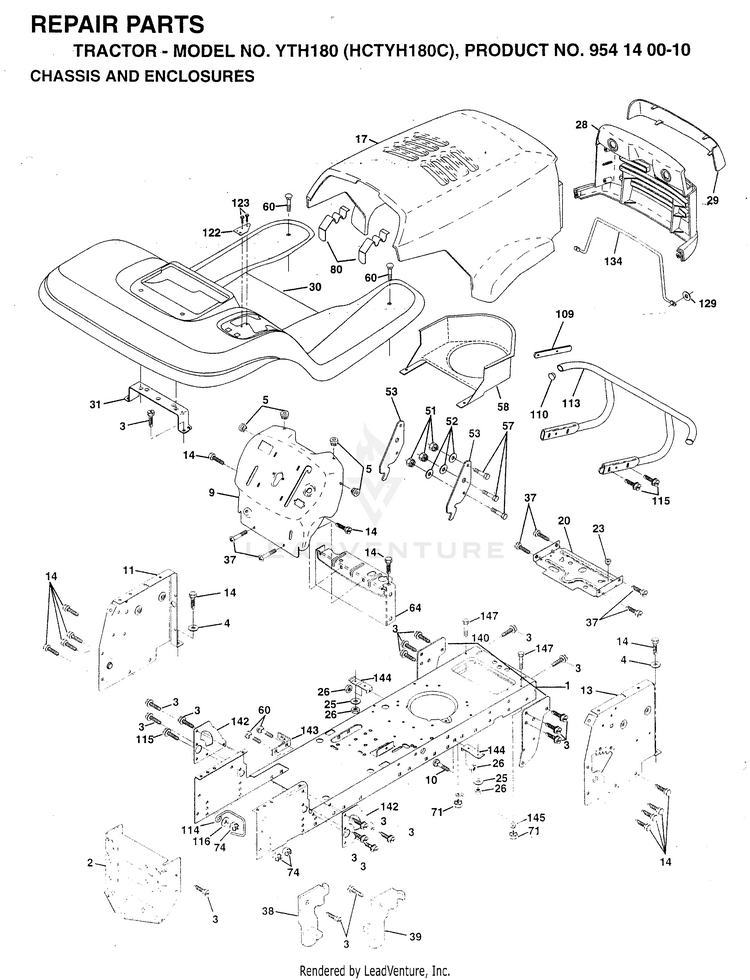

CHASSIS & ENCLOSURES

...
...
9
DASH/SILKSCREENED HUS-532154794
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
71
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
17
HOOD - LT/YT HUS-532156051
...
4
Washer 13/32 X 3/4 X 16 Ga. HUS-819131216
...
26
Nuts HUS-596322601
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
37
Screws HUS-596030701
...
115
BOLT HUS-874760620
...
25
GSPH HUS-596134901
...
147
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
145
ROD.PIVOT.HOOD HUS-532409167
...
14
Bolts HUS-596564001
...
13
PANEL HUS-532153913
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
113
BUMPER ASM. HUS-532170311
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
144
BRKT, FOOT REST HUS-532175582
...
142
PLATE REINFORCEMENT HUS-532175702
...
10
Bolts HUS-596728201
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
64
DASH LOWER HUS-532154798
...
134
ROD SUPPORT HOOD LT/PL HUSQ HUS-532150132
...
123
Screw HUS-532157927
...
57
Screws HUS-596230901
...
129
Washers HUS-596582301
...
39
BRACKET RH PIVOT HUS-532139887
...
140
BRACKET SUSPENSION FRONT HUS-532158418
...
52
Washers HUS-596135301
...
109
BUMPER BRACKET HUS-532170310
...
80
LATCH HOOD HUS-532155854
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
1
CHASSIS KIT HUS-532160525
...
74
Nuts HUS-596322601
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
122
BRACKET SHIFT STLT HUS-532157301
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
38
BRACKET LH PIVOT HUS-532139886
...
58
AIR DUCT HUS-532151171
...
110
PLUG PLASTIC HUS-532143679
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
