Husqvarna YTH180 - 96041002600 (2007-02) Riding Tractor

Model: YTH180 - 96041002600 (2007-02)

Back To Assemblies

Save Part Not Listed?
product name

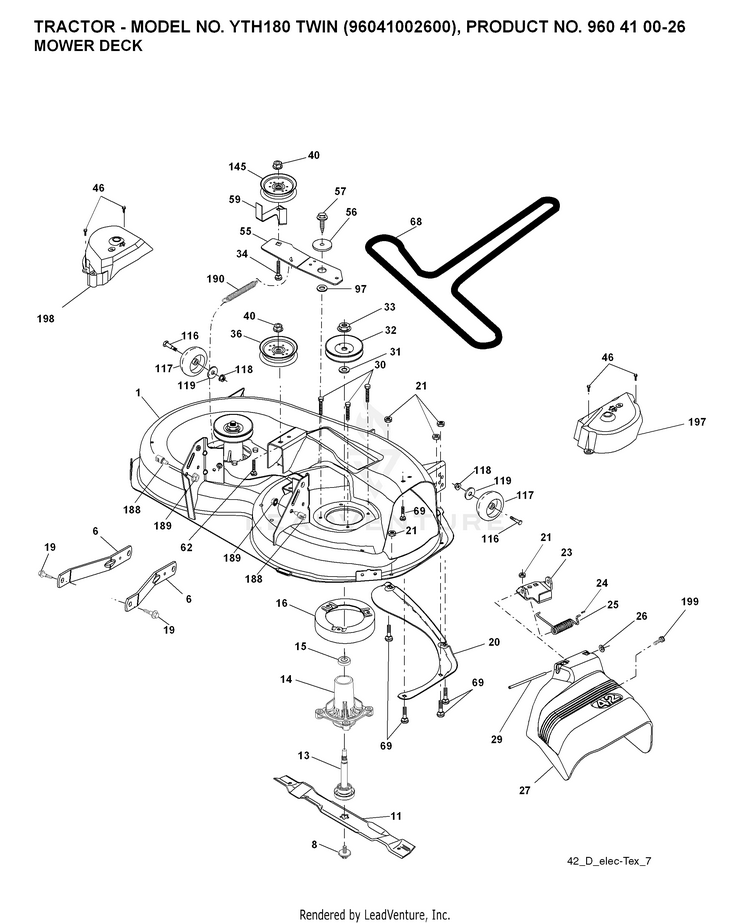

MOWER DECK / CUTTING DECK

...
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
190
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
34
GSPW Bolts HUS-596136101
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
118
Nuts HUS-596322601
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
189
GSPW Nuts HUS-596135701
...
59
SERVICE KIT GUARD HUS-531165901
...
1
Decks HUS-598602801
...
36
PULLEY.IDLER.FLAT HUS-532177968
...
197
NEEDS DESCRIPTION HUS-532409258
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
15
BEARING HUS-532110485
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
57
SCREW 3/8-16X1 HUS-817000616
...
33
Nuts HUS-596134801
...
69
Bolts HUS-596136401
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
199
SCREW 3/8-16X1/2 HUS-817670608
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
61
SPRING EXT ELEC CLUTCH HUS-532174882
...
27
NEEDS DESCRIPTION HUS-532406520
...
29
Rods HUS-595297001
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
26
NUT PUSH M HUS-532110452
...
56
SPACER.RETAINER HUS-532199092
...
-
Decks HUS-598602801
...
62
Bolts HUS-596136301
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
198
NEEDS DESCRIPTION HUS-532409259
...
116
Bolts HUS-596434402
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
32
PULLEY MANDREL HUS-532173436
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
119
GSPH HUS-596134901
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
-
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
21
Hardware HUS-596040501
...
117
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
24
CAP-SLEEVE LT HUS-532105304
...
68
BELT V SECONDARY HUS-532144959
...
11
42" HI-LIFT BLADE HUS-532138971
...
19
BOLT.SHOULDER HUS-532196539
...
145
PULLEY.IDLER.2006 HUS-532196106
