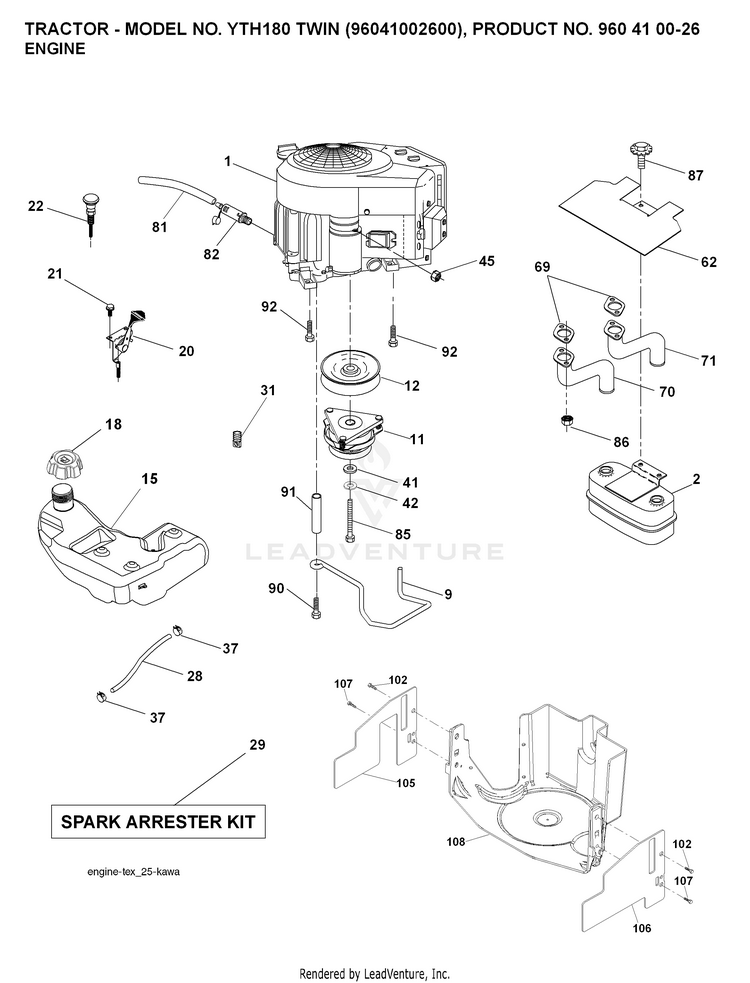

Husqvarna YTH180 - 96041002600 (2007-02) Riding Tractor

Model: YTH180 - 96041002600 (2007-02)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
21
Screws HUS-596321701
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
106
SHIELD.SIDE.RH.3842"TEX FRENCH HUS-532410529
...
37
HOSE CLAMP HUS-532123487
...
15
TANK.FUEL.4GAL HUS-532193499
...
91
BUSHING.1.375OD HUS-532187495
...
9
KEEPER.BELT.ENGINE.3.25 (3 2) HUS-532194319
...
87
BOLT.5/16-18UNCX1.W/SEMS.BLK HUS-532198239
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
108
NEEDS DESCRIPTION HUS-532410532
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
92
SCREW 3/8-16X1 HUS-817120616
...
105
SHIELD.SIDE.LH.3842"TEX FRENCH HUS-532410528
...
70
EXHAUST.TUBE.LH.KAWASAKI. HUS-532176067
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
107
SCREW.1/4-20X5/8 HUS-532137729
...
90
SCREW 3/8-16X1 HUS-817000616
...
42
Washers HUS-596238901
...
31
PUSH CLIP HUS-532145006
...
20
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
71
EXHAUST.TUBE.RH.KAWASAKI. HUS-532176068
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
12
PULLEY.ASM.ENG.OGURA.3 HUS-532194338
...
41
WASHER HUS-532126197
...
82
VALUE.OIL.DRAIN HUS-532428287
