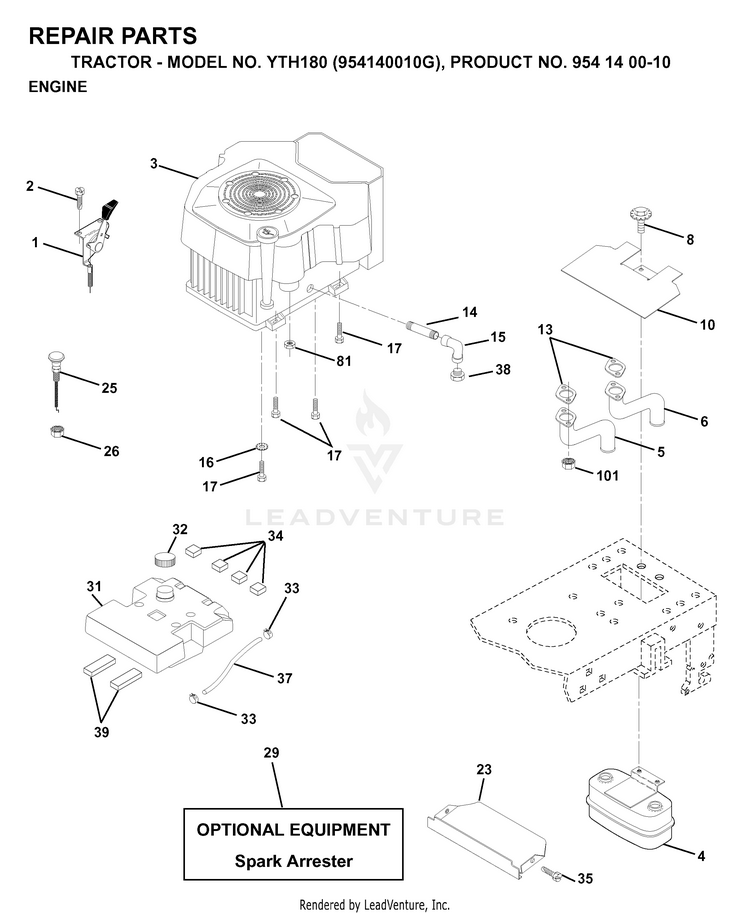

Husqvarna YTH180 - 954140010G (1998-10) Riding Tractor

Model: YTH180 - 954140010G (1998-10)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
39
PAD IDLER TI HUS-532109227
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
2
Bolts HUS-596582501
...
26
Nut Keps 3/8 - 24 UNF HUS-873920600
...
33
HOSE CLAMP HUS-532123487
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
15
VALUE.OIL.DRAIN HUS-532428287
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
16
Washers HUS-596238701
...
34
PAD-SPACER LT HUS-532106082
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
25
CONTROL, CHOKE HUS-532145996
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.8" HUS-587044808
...
6
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
31
TANK.FUEL(3.5.GAL) HUS-532157103
...
23
PROTECTOR HUS-532159880
...
101
Nuts HUS-596433401
...
14
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-813280336
...
1
CONTROL,TH/CH FLAG HUS-532170863
