Husqvarna YTH180 - 954140010C (1997-01) Riding Tractor

Model: YTH180 - 954140010C (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

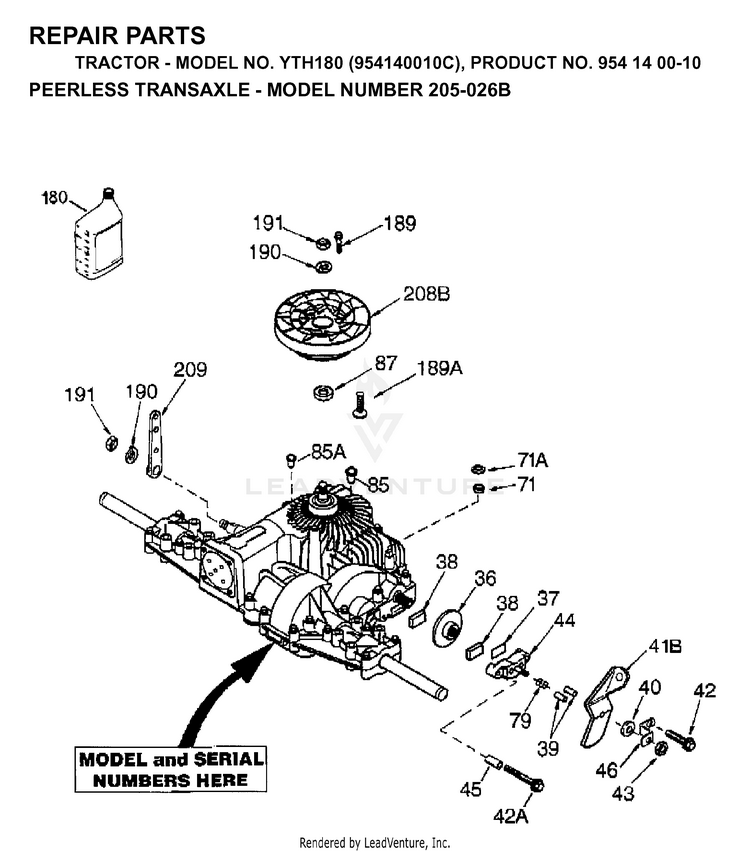

TRANSMISSION

...
...
39
Pin, Dowel HUS-786026
...
44
Holder, Brake pad HUS-790025
...
71
Seal, Square Cut HUS-788069
...
180
Gear Oil 80W90 HUS-730229A
...
38
Brake Pad (pkg of 2) HUS-799021
...
79
Piston Assembly HUS-792144
...
37
Plate, Brake pad HUS-790007
...
36
Brake Disk HUS-790075
...
42A
Screw, 1 /4-20 x 2-1 /4" HUS-792085A
...
43
Lock Nut 5/16-24 HUS-792075
...
40
Washer, Flat HUS-792076A
...
45
Spacer (1/2" OD) HUS-786066
...
42
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 HUS-792073
