Husqvarna YTH180 - 954001022 (1994-03) Riding Tractor

Model: YTH180 - 954001022 (1994-03)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
2
Bolts HUS-596582501
...
30
FOAM-STRIP LT HUS-532105037
...
43
NUT HUS-873610600
...
8
BRACKET MUFFLER HUS-532122439
...
20
RETAINER LT HUS-532105838
...
23
HEAT SHIELD HUS-532128953
...
16
Washers HUS-596238701
...
40
BUSHING OUTLET T HUS-532003645
...
42
CHOKE CONTROL HUS-532132781
...
19
RECEPTACLE LT HUS-532105839
...
15
VALUE.OIL.DRAIN HUS-532428287
...
41
STEM FUEL TANK HUS-532139277
...
29
KIT.SPARK ARRESTOR 794945 B&S FLAT SCM HUS-532137180
...
6
TUBE ASSY EXH RH RIGHT HUS-532122435
...
14
Nipple, Pipe 3/8 NPT x 4-1/2 HUS-813280336
...
22
STUD 1/4 TURN HUS-532123650
...
9
Screws HUS-596437001
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
36
GSPH HUS-596134901
...
39
PAD IDLER TI HUS-532109227
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
24
SCREW HUS-817021008
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
10
SHIELD HEAT LT LEFT HUS-532145552
...
17
BOLT HUS-874760620
...
44
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
31
FUEL TANK 3.5G REAR HUS-532151346
...
1
CONTROL.THROT.RH.BLK.FLG.44.75 RIGHT HUS-532132748
...
34
PAD-SPACER LT HUS-532106082
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
18
HEAT SHIELD HUS-532133747
...
5
TUBE ASSY EXH LH LEFT HUS-532122434
...
33
HOSE CLAMP HUS-532123487

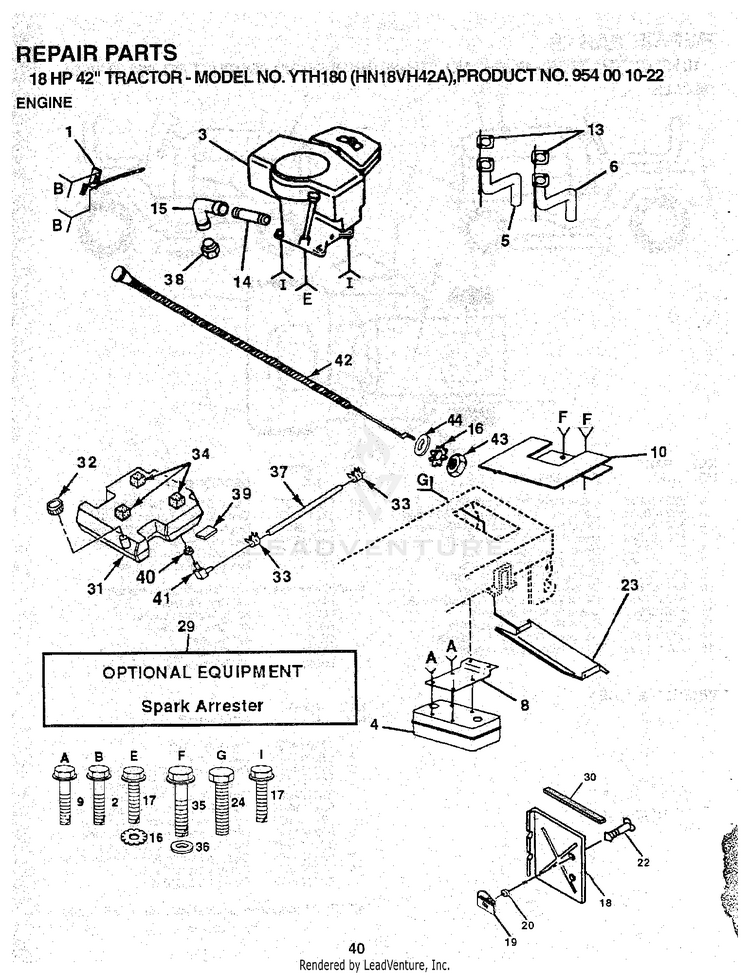

Schematic Image Zoomed
