Husqvarna YTH160DR (1999 & Before) Tractor

Model: YTH160DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

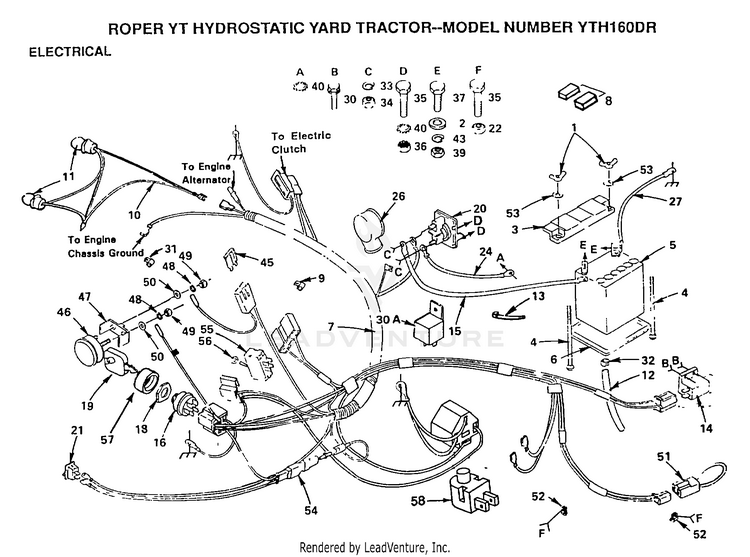

ELECTRICAL

...
...
1
SUB= 146525 HUS-73490400
...
2
WASHER HUS-19091016
...
3
SUB= 150109 HUS-102476X
...
4
BOLT HUS-72240460
...
5
SUB= 123899X HUS-121537X
...
6
"TRAY T, BATTERY" HUS-7603J
...
7
NLA HUS-121534X
...
8
"CAP,BATTERY " HUS-121264X
...
9
CLIP T HUS-4171R
...
10
HARNESS T HUS-110859X
...
11
SUB= 4152J HUS-7662J
...
12
SUB= 7697J HUS-100541K
...
13
WIRE TIE HUS-7192 J
...
14
SWITCH-INTER. GT HUS-104445X
...
15
CABLE-BATTERY T HUS-4206J
...
16
SUB= STD365402 HUS-4406R
...
18
SUB= 124211X HUS-109788X
...
19
KEY MOLDED HUS-109434X
...
20
SUB= 146154 HUS-109081X
...
21
SWITCH LT HUS-110712X
...
22
SUB= 73690400 HUS-73680400
...
24
"CABLE T, BATTERY" HUS-4799J
...
26
SUB= 154336 HUS-719J
...
27
CABLE T HUS-4207J
...
30
SCREW HUS-17021008
...
30A
RELAY ASSY T HUS-109748X
...
31
CLIP T HUS-2751R
...
32
"SCREW, TAPPING LT" HUS-106596X
...
33
SUB= 10040400 HUS-10090400
...
34
NUT HUS-73350400
...
35
BOLT HUS-74780408
...
36
NUT HUS-73510400
...
37
BOLT LT HUS-74760412
...
39
SUB= 50675 HUS-73220400
...
40
LOCKWASHER HUS-11050400
...
43
LOCKWASHER HUS-10040400
...
45
FUSE HYT HUS-108824X
...
46
AMMETER T HUS-9433R
...
47
SUB= 532131708 HUS-6009J
...
48
SUB= 10071000 HUS-10101000
...
49
NUT HUS-73911000
...
50
WASHER HUS-19070818
...
51
SUB= 141940 HUS-102501X
...
52
CLIPT HUS-235R
...
53
LOCKWASHER GT HUS-11030400
...
54
SUB= 135665 HUS-106315X
...
55
SWITCH.PTO.T HUS-4021J
...
56
HEX NUT T HUS-4022J
...
57
SUB= 147626 HUS-109787X
...
58
SWITCH SEAT HUS-121305X
...
59
SUB= 71031008 HUS-74641008
...
60
"NUT,KEPS" HUS-73951000
...
xx
SHEET INSTR LT HUS-101539X
...
xx
SHEET-INSTRUCTION (FRENCH) HUS-101572X
...
xx
OWNERS MANUAL HUS-121696X
...
xx
OWNER'S MANUAL - FRENCH HUS-121609X
