Husqvarna YTH160DR (1999 & Before) Tractor

Model: YTH160DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

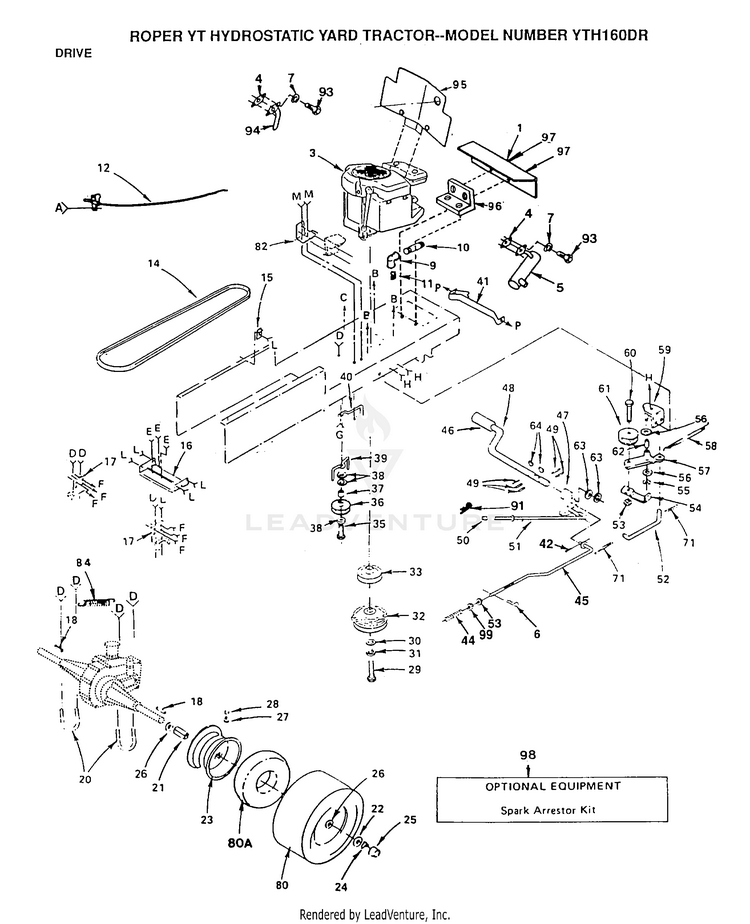

DRIVE , ENGINE, FRONT WHEEL

...
...
1
BAFFLE - VERTICAL HUS-110012X
...
3
ENGINE 16 H.P. MODEL #402707 TYPE #1211 - 01 HUS-110562X
...
4
SUB= 272250 HUS-8545J
...
5
MUFFLER HYT HUS-108373X
...
6
RETAINER M HUS-4497H
...
7
LOCKWASHER HUS-10040400
...
9
ELBOW HUS-13200300
...
10
PIPE NIPPLE LT HUS-13280336
...
11
PLUG OIL DRAIN HUS-91084
...
12
CONTROL THROTTLE HUS-121524X
...
14
SUB= 120418X HUS-108103X
...
15
CLIP T HUS-2751R
...
16
PLATE TRANS SUPT HUS-121187X
...
17
SUB= 126649X HUS-121191X
...
18
SUB= 123583X HUS-2703J
...
20
U BOLT HUS-121189X
...
21
SPACER SPLIT HUS-121199X
...
22
WASHER HUS-121748X
...
23
SUB= 106108X417 HUS-106108X
...
24
E-RING LT HUS-12000001
...
25
HUB CAP HUS-104757X
...
27
VALVE STEM LT HUS-65139
...
28
VALVE CAP HUS-59192
...
29
SUB= 71130768 HUS-74610764
...
30
WASHER LT HUS-19152405
...
31
LOCKWASHER HUS-10040700
...
32
SUB= 142600 HUS-108218X
...
33
SUB= 136905 HUS-109841X
...
35
BOLT HUS-74760644
...
36
SUB= 123674X HUS-4859J
...
37
SPACER T HUS-4470J
...
38
WASHER HUS-19131312
...
39
"KEEPER,BLT ENG LT" HUS-105730X
...
40
KEEPER BELT ENGLH HUS-121218X
...
41
SUB= 109172X HUS-109169X
...
42
COTTER PIN HUS-76020412
...
44
SPRING ROD LT HUS-106888X
...
45
ROD BRAKE HUS-121200X
...
46
PEDAL COVER T HUS-8883R
...
47
ARM BRAKE LT HUS-106918X
...
48
SHAFT, FOOT PEDAL HUS-108096X
...
49
SUB= 2882J HUS-1572H
...
50
PLUNGER CAP T HUS-71673
...
51
SUB= 125637X HUS-105844X
...
52
"LINK, CLUTCH T" HUS-105710X
...
53
SUB= 73690600 HUS-73680600
...
54
SUB= 123205X HUS-106499X
...
55
KLIP RING HUS-12000039
...
56
WASHER LT HUS-110812X
...
57
"ASS T, BELLCRAN" HUS-105707X
...
58
"SPRING, RETURN LT" HUS-105709X
...
59
SUB= 123102X HUS-105724X
...
60
SUB= 74930624 HUS-74760624
...
61
SUB= 139245 HUS-106298X
...
62
"LY, BEARING" HUS-105706X
...
63
WASHER HUS-121749X
...
64
SUB= 2228M1 HUS-2228M
...
71
COTTER PIN HUS-76020412
...
49
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
80
SUB= 918122082X HUS-122082X
...
80A
TUBE.18X9.5-8 HUS-7152J
...
82
BRACKET LT HUS-108236X
...
84
SUB= 146682 HUS-110442X
...
91
SPRING.RETAINER HUS-4921H
...
93
SUB= 74780414 HUS-74780412
...
94
EXHAUST TUBE T HUS-100229L
...
95
BAFFLE YT HUS-104917X
...
96
BRACKET HEAT SHIELD HUS-110013X
...
97
SCREW LT HUS-17490508
...
98
SUB= 132922 HUS-100091M
...
99
NUT HUS-73350600
