Husqvarna YTH160CR (1999 & Before) Tractor

Model: YTH160CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

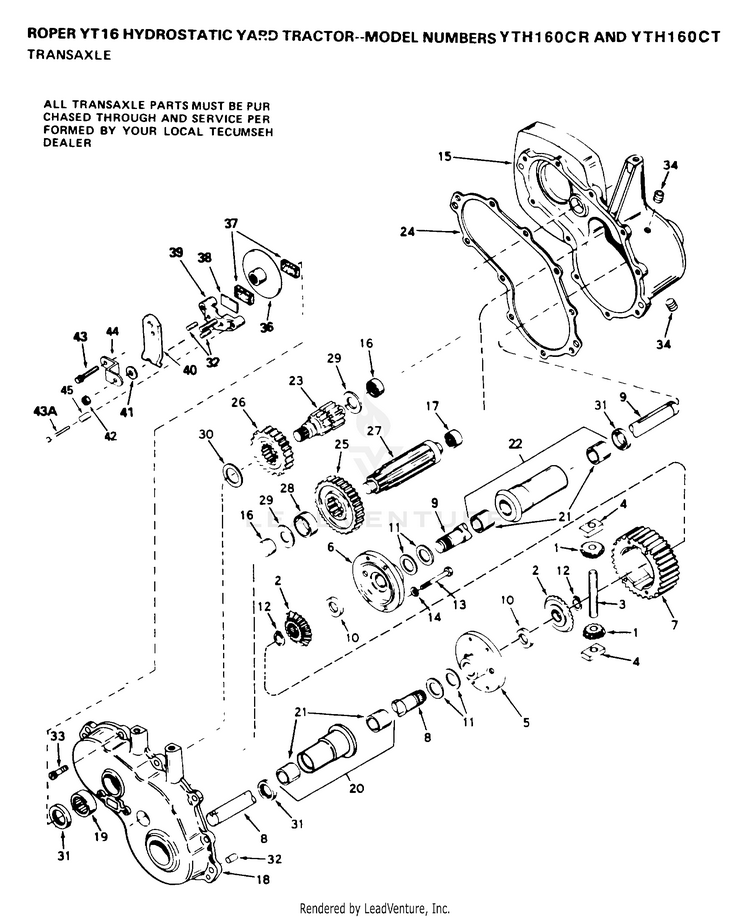

TRANSAXLE P/N BREAKOUT

...
...
1
PINION, 10T HUS-778197
...
2
GEAR BEVEL HUS-778198
...
3
PIN DRIVE HUS-786019
...
4
BLOCK DRIVE HUS-786027
...
5
CARRIER, DIFFERENTIAL HUS-774028A
...
6
CARRIER, DIFFERENTIAL HUS-774029A
...
7
GEAR, RING HUS-778033A
...
8
AXLE HUS-774526
...
9
AXLE HUS-774527
...
10
WASHER HUS-780107
...
11
WASHER THRUST HUS-780042
...
12
RING STRAP HUS-792018
...
13
SCREW, 1/4-20 X 2-1/4 HUS-792020
...
14
WASHER LOCK 1/4 HUS-792006
...
15
CASE ASSY HUS-770052
...
16
BEARING, NEEDLE HUS-780013
...
17
BEARING, NEEDLE HUS-780088
...
18
COVER ASSY HUS-772085
...
19
BEARING, NEEDLE HUS-780089
...
20
HOUSING & BUSHING ASSY HUS-782041A
...
21
BUSHING HUS-780054
...
22
HOUSING & BUSHING ASSY HUS-782042A
...
23
SHAFT, BRAKE HUS-776207
...
24
GASKET HUS-788044
...
25
GEAR, OUTPUT HUS-778036
...
26
GEAR, IDLER HUS-778083
...
27
SHAFT, OUTPUT HUS-778041
...
28
SPACER HUS-786017
...
29
WASHER HUS-780001
...
30
WASHER, THRUST HUS-780090
...
31
SEAL, OIL HUS-788008
...
32
PIN DOWEL HUS-786026
...
33
SCREW HUS-792046
...
34
PLUG HUS-792122
...
36
DISK, BRAKE HUS-790027
...
37
PAD BRAKE HUS-790006
...
38
PLATE BRAKE PAD HUS-790007
...
39
HOLDER BRAKE PAD HUS-790025
...
40
LEVER, BRAKE HUS-790017
...
41
WASHER, FLAT HUS-792076
...
42
LOCKNUT 5/16-24 HUS-792075
...
43
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
43A
SCREW FLNG HEX 1/4-20 X 2-1/4 HUS-792085
...
44
BRKT BRAKE LEVER HUS-786086
...
45
SPACER HUS-786066
