Husqvarna YTH160BT (1999 & Before) Tractor

Model: YTH160BT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

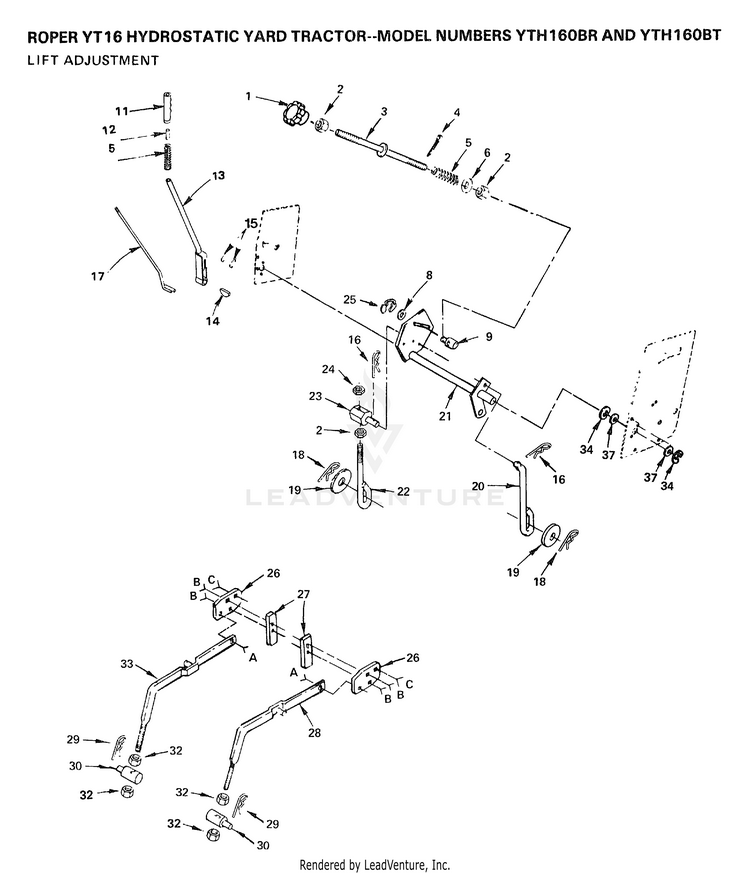

LIFT ADJUSTMENT

...
...
1
SUB= 138057 HUS-100734K
...
2
NUT.HEX.3/8-16UNC HUS-73220600
...
3
ROD ADJUST LT HUS-100735K
...
4
SUB= 3145 HUS-76020308
...
5
SPRING T HUS-2876H
...
6
WASHER HUS-19131016
...
8
WASHER HUS-19151216
...
9
SUB= 101272K HUS-101272X
...
11
GRIP HUS-109413X
...
12
SUB= 125925X HUS-105723X
...
13
LEVER ASSY LT HUS-104597X
...
14
KEY STD HUS-8330H
...
15
SCREW HUS-23180606
...
16
SUB= 85902 HUS-4939M
...
17
ROD ASSY-LEVER LT HUS-104598X
...
19
WASHER T HUS-19171516
...
20
LIFT LINK LT HUS-110029X
...
21
SHAFT T HUS-109990X
...
22
LINK LIFT LT HUS-105855X
...
23
SUB= 132793 HUS-106204X
...
24
SUB= 73690600 HUS-73680600
...
25
KLIP RING HUS-12000037
...
26
"BRACKET, SUSPE T" HUS-105864X
...
27
SUB= 121252X HUS-106854X
...
28
SUB= 121598X HUS-105862X
...
29
SPRING H HUS-9135R
...
30
SUB= 130171 HUS-106308X
...
32
NUT HUS-73220800
...
33
SUB= 121599X HUS-105863X
...
34
RING HUS-12000029
...
37
WASHER HUS-19292016
