Husqvarna YTH160BT (1999 & Before) Tractor

Model: YTH160BT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

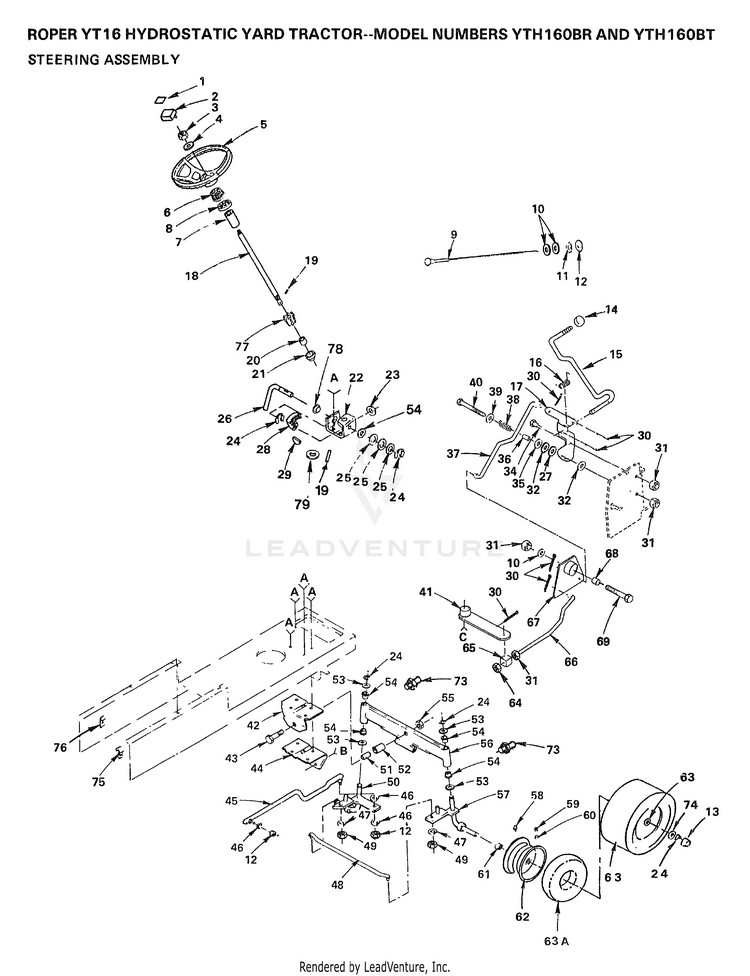

STEERING

...
...
1
DECAL - STEERING WHEEL HUS-104590X
...
2
INSERT-WHEEL LT HUS-100710L
...
3
NUT HUS-73360800
...
4
WASHER HUS-100712K
...
5
SUB= 150547 HUS-100713N
...
6
ADAPTER LT HUS-100711L
...
7
TUBE YT HUS-106945X
...
8
SPACER LT HUS-106943X
...
9
SUB= 132781 HUS-6447J
...
10
WASHER HUS-19131316
...
11
LOCKWASHER HUS-11050600
...
12
SUB= 7810H HUS-73610600
...
13
HUB CAP HUS-104757X
...
14
KNOB T (1/2-HOLE) HUS-106933X
...
15
NLA HUS-108353X
...
16
NLA HUS-108194X
...
17
BRKT CONTROL HYT HUS-108196X
...
18
STEERING SHAFT T HUS-109557X
...
19
DRIVE PIN HUS-2882J
...
20
SHAFT SPACER LT HUS-74580
...
21
BUSHING HUS-71208
...
22
SUB= 110150X HUS-109432X
...
23
WASHER D HUS-19212016
...
24
RING HUS-12000029
...
25
WASHER .T HUS-6266H
...
26
ROD STEERING T HUS-108683X
...
27
WASHER HYT HUS-108972X
...
28
GEAR.SECTOR.HYT HUS-108684X
...
29
KEY-WOODRUFF LT HUS-106126X
...
30
COTTER PIN HUS-76020412
...
31
SUB= 73690600 HUS-73680600
...
32
WASHER FRIC HYT HUS-108200X
...
34
BOLT HYT HUS-108518X
...
35
WASHER D HUS-19212016
...
36
SPACER HYT HUS-108201X
...
37
LINK CONTROL HY HUS-108397X
...
38
SPRING HYT HUS-108844X
...
39
WASHER HUS-19132012
...
40
BOLT - HEX 3/8 - 16 X 3 HUS-74760648
...
41
ARM ASSEM HYT HUS-108209X
...
42
SUPPORT-SADDL T HUS-105663X
...
43
BOLT LT HUS-74761060
...
44
SUPPORT.SADDLE.FT HUS-105664X
...
45
LINK-DRAG LT HUS-105727X
...
46
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
47
LOCKWASHER HUS-10040500
...
48
ROD TIE HYT HUS-108110X
...
49
NUT HUS-73610500
...
50
SPINDLE LH YT HUS-105655X
...
51
SUB= 154391 HUS-105726X
...
52
SUB= 110438X HUS-105725X
...
53
SUB= 121749X HUS-19252016
...
54
COL. SRTG. BEAR. HUS-3366R
...
55
"NUT-LOC,FLANGE LT" HUS-73901000
...
56
FRONT AXLE HUS-108075X
...
57
SUB= 130897 HUS-105653X
...
58
FITTING LT HUS-278H
...
59
VALVE STEM LT HUS-65139
...
60
VALVE CAP HUS-59192
...
61
"FLANGE, BEARING" HUS-9040H
...
62
SUB= 106732X417 HUS-106732X
...
63
SUB= 122073X HUS-106222X
...
63A
TUBE.5.3/4.5/6 HUS-59904
...
64
NUT HUS-73350600
...
65
TRUNION HYT HUS-108212X
...
66
ROD-ADJ. CONTROL HUS-108213X
...
67
"HYT, BELLCRANK" HUS-108205X
...
68
SPACER HYT HUS-108198X
...
69
SUB= 74930624 HUS-74760624
...
73
ZERK M HUS-6855M
...
74
SUB= 121748X HUS-19252616
...
75
INSUL CLIP T HUS-5320R
...
76
CLIP T HUS-2751R
...
77
GEAR PINION T HUS-108685X
...
78
NYLINER T HUS-109816X
...
79
WASHER YTV HUS-101930X
