Husqvarna YTH160BT (1999 & Before) Tractor

Model: YTH160BT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

PUMP

...
...
2
RESERVOIR CVR HYT HUS-108907X
...
3
RESERVOIR BDY HYT HUS-108908X
...
5
SEAL RING HYT HUS-108910X
...
6
COVER HUS-108911X
...
7
PIN HYT HUS-108912X
...
8
RETAINING RING HUS-108913X
...
9
WASHER HYT HUS-108914X
...
10
NLA HUS-108915X
...
11
GUIDE FITTING HYT HUS-108916X
...
12
NLA HUS-108917X
...
13
NLA HUS-108918X
...
14
SPRING HYT HUS-108919X
...
15
SEAL RING HYT HUS-108920X
...
16
PUMP ROTOR HYT HUS-108921X
...
17
PUMP RACE HYT HUS-108922X
...
18
NLA HUS-108923X
...
19
PISTON HYT HUS-108924X
...
20
NLA HUS-108925X
...
21
O RING HYT HUS-108926X
...
22
PINTLE HUS-108927X
...
23
NLA HUS-108928X
...
24
SUB= 108952X HUS-108929X
...
25
SNAP RING HUS-108930X
...
26
SUB= 108950X HUS-108931X
...
27
INPUT SHAFT HYT HUS-108932X
...
28
SUB= 108949X HUS-108933X
...
29
O RING HYT HUS-108934X
...
30
NUT&GASKET AS HYT HUS-108935X
...
31
SHAFT DUMP HYT HUS-108936X
...
32
SEAL HYT HUS-108937X
...
33
CONTROL SHAFT HUS-108938X
...
34
SUB= 108938X HUS-108939X
...
35
NLA HUS-108940X
...
36
NLA HUS-108941X
...
37
VALVE BODY HYT HUS-108942X
...
38
"HYT, BALL" HUS-108943X
...
39
RETAINER RING HYT HUS-108944X
...
40
SPRING HYT HUS-108945X
...
41
SUB= 108961X HUS-108946X
...
42
SUB= 108960X HUS-108947X
...
43
BODY HYT HUS-108948X
...
44
SEAL HYT HUS-108949X
...
45
"HYT, BEARING" HUS-108950X
...
46
SNAP RING HUS-108951X
...
47
RETAINER RING HYT HUS-108952X
...
48
NLA HUS-108953X
...
49
NLA HUS-108954X
...
50
RETAINER RING HYT HUS-108955X
...
51
OUTPUT SHAFT HUS-108956X
...
52
KEY HYT HUS-108957X
...
53
MOTOR RACE HYT HUS-108958X
...
54
CAP SCREW HYT HUS-108959X
...
55
O RING HYT HUS-108960X
...
56
PLUG HYT HUS-108961X

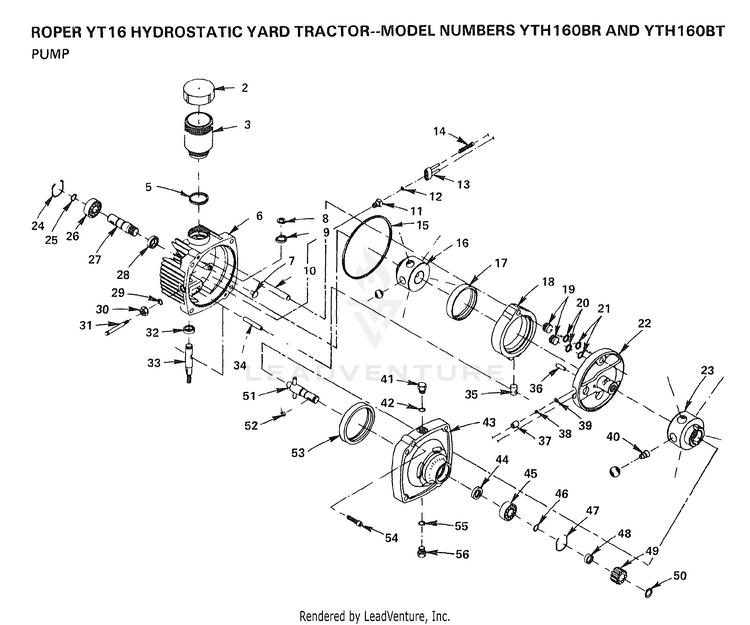

Schematic Image Zoomed
