Husqvarna YTH160BT (1999 & Before) Tractor

Model: YTH160BT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

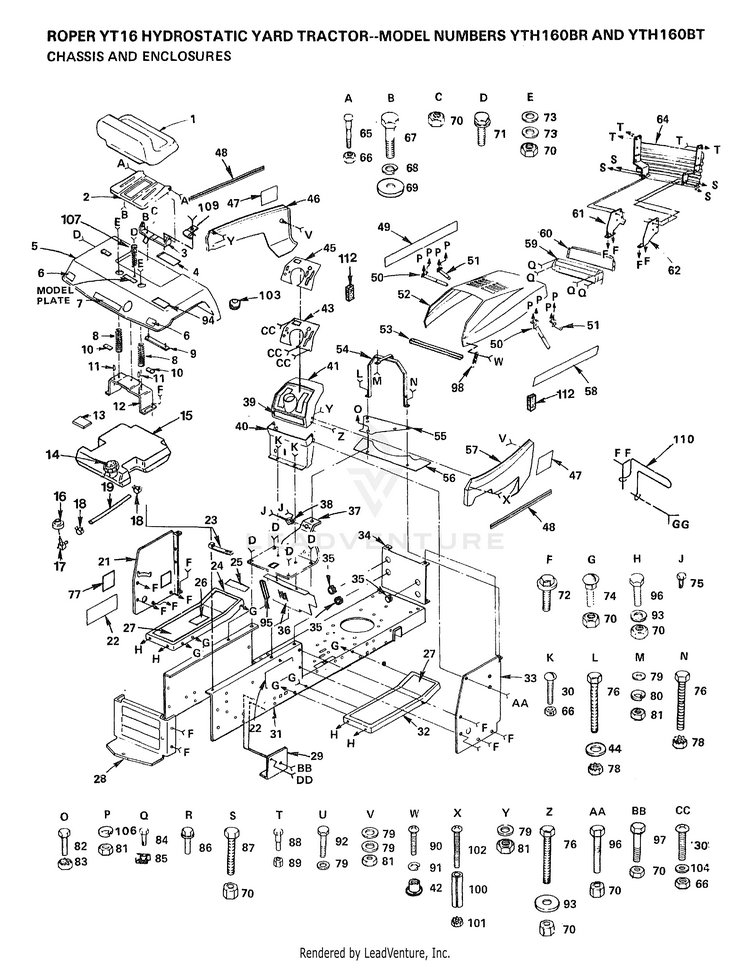

CHASSIS AND ENCLOSURES

...
...
1
SUB= 164945 HUS-110057X
...
2
SEAT PAN T HUS-109866X
...
3
BRACKET T HUS-110378X
...
4
SUB= 133796 HUS-106974X
...
4
SUB= 120822X HUS-108658X
...
5
NLA HUS-109593X367
...
6
REFLECTOR-TAIL YT HUS-106202X
...
7
NLA HUS-104810X
...
8
SPRING LT HUS-105512X
...
9
SUB= 140675 HUS-105511X
...
10
"CLAMP, SPRING LT" HUS-105514X
...
11
NUT-PUSH YT HUS-105531X
...
12
SUB= 137113 HUS-105509X
...
13
PAD-SPACER T HUS-6431J
...
14
SUB= 158990 HUS-109462X
...
15
TANK.FUEL.LT. HUS-109202X
...
16
BUSHING OUTLET T HUS-3645J
...
17
FUEL TANK STEM GT HUS-8710J
...
18
SUB= 123487X HUS-6999R
...
19
SUB= 8543R HUS-5277J
...
21
PANEL DASH HYT HUS-106966X
...
22
NLA HUS-104875X
...
23
SUB= 7192J HUS-8292J
...
24
SUB= 145244X417 HUS-105465X
...
25
DECAL T HUS-4900J
...
25
DECAL T HUS-101892X
...
26
NLA HUS-109069X
...
27
SUB= 108256X HUS-109864X
...
28
SUB= 145009 HUS-102481X
...
29
DEFLECTOR HYT HUS-109219X
...
30
SCREW HUS-74180512
...
31
CHASSIS T HUS-109512X
...
32
SUB= 145243X417 HUS-105464X
...
33
PANEL-DASH HUS-108398X
...
34
NLA HUS-104920X
...
35
SNAP BUSHING T HUS-9151R
...
36
SUB= 109252X HUS-109252X367
...
37
SADDLE HYT HUS-108106X
...
38
SUB= 155108 HUS-1554J
...
39
NLA HUS-108635X
...
39
SUB= 138956 HUS-108813X
...
40
LOWER DASH HUS-104805X
...
41
SUB= 121312X HUS-108396X
...
42
WELDNUT HUS-2029J
...
43
PLATE-DASH HUS-108558X
...
44
WASHER HUS-19131316
...
45
DECAL-DASH HUS-108555X
...
45
DECAL-DASH HUS-108814X
...
46
SUB= 150302X505 HUS-108372X367
...
47
DECAL-SIDE PANEL HUS-108589X
...
48
NLA HUS-104646X
...
49
NLA HUS-104643X
...
50
SUB= 155013 HUS-106784X
...
51
SUB= 155013 HUS-104618X
...
52
SUB= 150301X505 HUS-108370X367
...
53
FOAM-STRIP LT HUS-105037X
...
54
NLA HUS-104904X
...
55
SUB= 140181 HUS-106965X
...
56
SUB= 109740X HUS-104919X
...
57
SUB= 140679X505 HUS-108371X367
...
58
NLA HUS-104644X
...
59
SUB= 147717 HUS-104613X
...
60
LENS LT HUS-106395X
...
61
SUPPORT-GRILL LT HUS-104632X
...
62
NLA HUS-104633X
...
63
SUB= 105419X388 HUS-104634X
...
64
GRILL GT HUS-104628X
...
65
SUB= 139888 HUS-105529X
...
66
SUB= 73690500 HUS-73680500
...
67
SUB= 74780612 HUS-74760612
...
68
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
69
WASHER T HUS-19131212
...
70
SUB= 73690600 HUS-73680600
...
71
SCREW LT HUS-17490608
...
72
SCREW HUS-17490612
...
73
WASHER HUS-19132012
...
74
BOLT HUS-72140606
...
75
SUB= 98000165 HUS-17431008
...
76
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
77
SUB= 121794X HUS-105505X
...
78
NUT HUS-73510600
...
79
WASHER PM HUS-19091216
...
80
LOCKWASHER HUS-10040400
...
81
SUB= 50675 HUS-73220400
...
82
BOLT HUS-74780512
...
83
NUT HUS-73510500
...
84
SCREW LT HUS-17211010
...
85
"""J"" FASTENER LT" HUS-104755X
...
86
SCREW HUS-17490512
...
87
BOLT HUS-74760616
...
88
BOLT T HUS-7605J
...
89
SUB= 73690400 HUS-73680400
...
90
SCREW HUS-74191008
...
91
LOCKWASHER HUS-10071000
...
92
SCREW HEX CRT HUS-17490412
...
93
WASHER HUS-19131312
...
94
DECAL-CAUTION HUS-7178J
...
94
NLA HUS-101893X
...
95
FOAM STRIP HYT HUS-105036X
...
96
SUB= 74780612 HUS-74760612
...
97
BOLT HUS-74760610
...
98
SUB= 109808X HUS-100225L
...
99
NUT HUS-73731000
...
100
SPACER LT HUS-7206J
...
101
WASHER HUS-19070818
...
102
SCREW HUS-74981020
...
103
GROMMET T HUS-109641X
...
104
WASHER HUS-19111116
...
106
SUB= 10040400 HUS-10090400
...
107
SPRING T HUS-109867X
...
109
CLIP T HUS-2751R
...
110
GUARD MUFFLER HYT HUS-108885X
...
112
STRIP - FOAM HUS-109459X
