Husqvarna YTH160AT (1999 & Before) Tractor

Model: YTH160AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

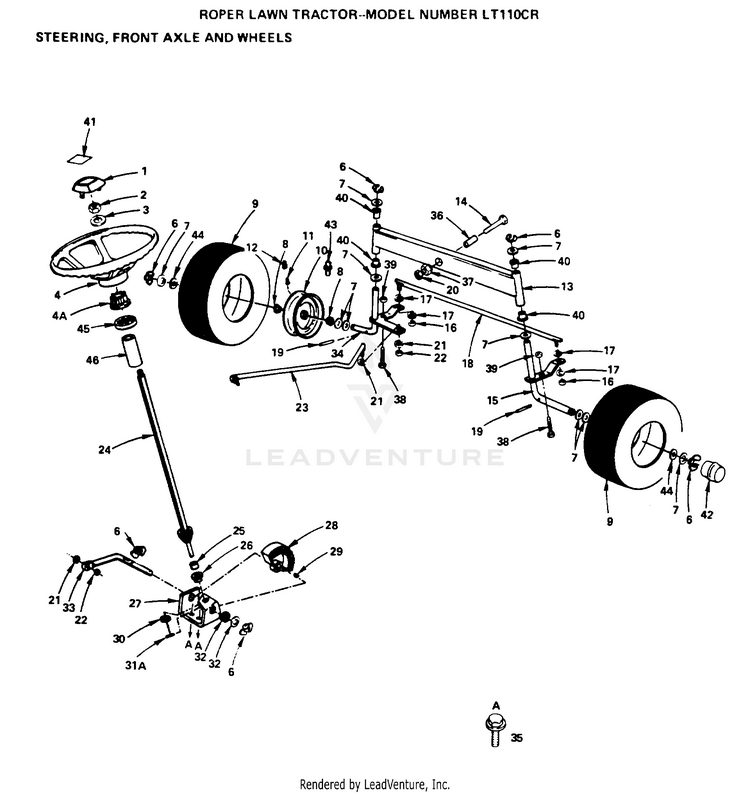

STEERING, FRONT WHEELS, AXLE

...
...
1
INSERT-WHEEL LT HUS-100710L
...
2
NUT HUS-73360800
...
3
WASHER HUS-100712K
...
4
SUB= 150547 HUS-100713N
...
4A
ADAPTER LT HUS-100711L
...
6
RING HUS-12000029
...
7
SUB= 121749X HUS-19252016
...
8
"FLANGE, BEARING" HUS-9040H
...
9
SUB= 122073X HUS-106222X
...
xx
TUBE.5.3/4.5/6 HUS-59904
...
10
WHEEL LT HUS-106218X
...
11
VALVE STEM LT HUS-65139
...
12
VALVE CAP HUS-59192
...
13
AXLE ASSY YTV HUS-102482X
...
14
NLA HUS-74761052
...
15
NLA HUS-100633L
...
16
NUT HUS-73610500
...
17
LOCKWASHER HUS-10040500
...
18
SUB= 100629K HUS-101005M
...
19
SUB= 5142H HUS-9530R
...
20
LOCKNUT M HUS-73681000
...
21
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
22
SUB= 7810H HUS-73610600
...
23
DRAG LINK LTV HUS-100628N
...
24
SHAFT ASSY LT HUS-105008X
...
25
SHAFT SPACER LT HUS-74580
...
26
BUSHING HUS-71208
...
27
SUB= 110150X HUS-102531X
...
28
GEAR-SECTOR T HUS-4301J
...
29
SUB= 2228M1 HUS-2228M
...
30
WASHER D HUS-19212016
...
31A
DRIVE PIN HUS-2882J
...
32
WASHER .T HUS-6266H
...
33
ROD STEERING LT HUS-100627L
...
34
SPINDLE LH LTV HUS-100630L
...
35
SCREW HUS-17490612
...
36
TUBE T HUS-6826J
...
37
NLA HUS-156J
...
38
BOLT HUS-74930644
...
39
NUT HUS-73510600
...
40
COL. SRTG. BEAR. HUS-3366R
...
41
DECAL - STEERING WHEEL HUS-104590X
...
42
HUB CAP HUS-104757X
...
43
FITTING LT HUS-278H
...
44
WASHER LT HUS-19252516
...
45
SPACER LT HUS-106943X
...
46
TUBE LT HUS-106944X
