Husqvarna YTH160 - 954140008A (1997-01) Riding Tractor

Model: YTH160 - 954140008A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

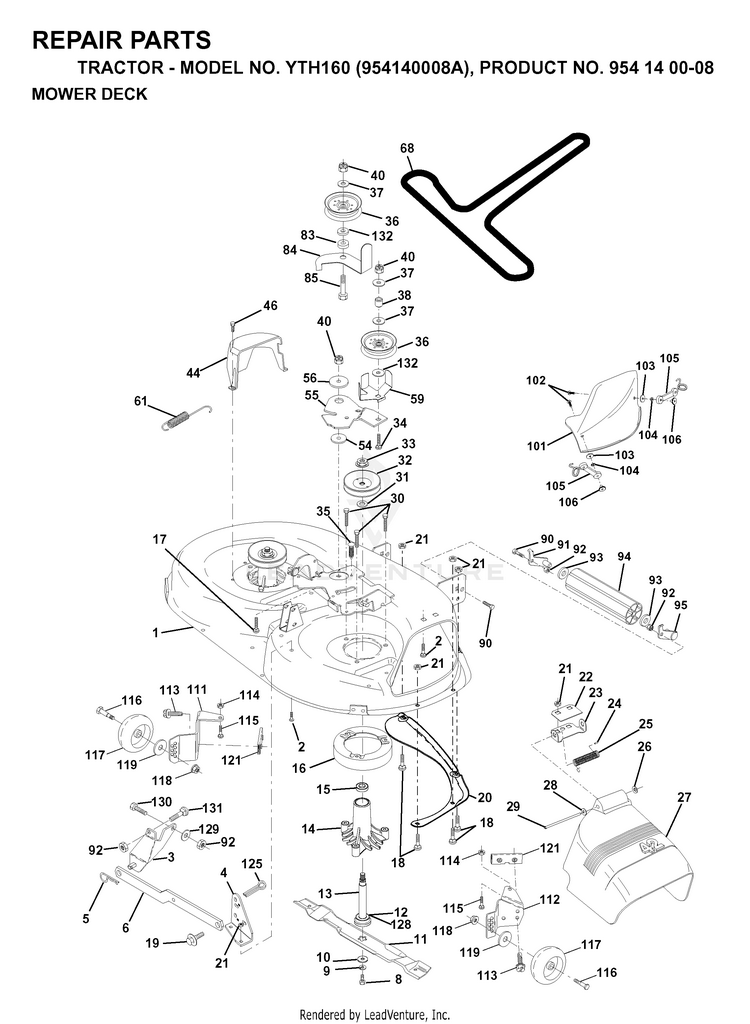

MOWER DECK / CUTTING DECK

...
...
3
NUT 3/4-16 HEX SLTD GR5 ZD HUS-539101468
...
36
WASHER HUS-539103547
...
46
Bolts HUS-596434201
...
539107392
WHEEL/TIRE.ASM.23X8.5-12.GREY HUS-539106882
...
539912234
VALVE STEM TR-412 HUS-539912234
...
539105983
RIM 0 OFFSET 8.5" WIDE HUS-539105983
...
34
Washers HUS-596238701
...
28
NUT 3/8F HUS-539990155
...
23
LINKAGE - SHORT HUS-539106971
...
35
HEX BOLT 3/8 X 1" HUS-539106791
...
14
LINKAGE HUS-539106972
...
19
NUT 3/8F HUS-539990155
...
539107431
TIRE.TURF.MASTER.23X10.5-12 HUS-539107431
...
37
NUT HEX 1/2 HUS-539990258
...
24
GRIP, PARK BRAKE HUS-539105036
...
44
Washers HUS-596583501
...
10
COMPRESSION SPRING HUS-539102817
...
8
HCS 1/2C X 2 3/4 HUS-539101332
...
539108882
NEEDS DESCRIPTION NOTE! HUS-539108882
...
18
Yoke HUS-596739901
...
42
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
5
HUB W/BRAKE DRUM HUS-539102415
...
43
BRACKET HUS-539105029
...
4
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
32
Pins HUS-596029501
...
41
RETAINING RING, 7/8" HUS-539101151
...
15
MOTOR STANDOFF HUS-539106989
...
30
GSPW Nuts HUS-596240901
...
40
GSPW NUTS HUS-596135601
...
9
CLEVIS PIN HUS-539102746
...
31
Bolts HUS-596564401
...
6
PIN COTTER 4MM X 45MM HUS-539104288
...
17
GSPW Zerks HUS-596899901
...
45
GSPW Nuts HUS-596240901
...
38
WASHER 1/2" SPLIT LOCK HUS-539990254
...
2
WHEEL/TIRE.ASM.23X10.5-12.GREY HUS-539106883
...
47
Screws HUS-596230901
...
16
BRAKE WLDMNT HUS-539106990
...
11
TRUNION PIN HUS-539102821
...
33
GSPW Washers HUS-596433701
...
7
MB WHEEL MOTOR HUS-539104417
...
13
BRAKE BAND SUPPORT HUS-539106873
...
539107432
TIRE 23X8.5-12 HUS-522905001
...
48
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
27
BUSHING HUS-539108619
...
39
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
1
Nuts HUS-587653903
...
26
Yoke HUS-596739901
...
25
Washers HUS-596581701
...
21
BRAKE LEVER WLDMT HUS-539108616
...
29
FLANGE BEARING HUS-539102797
...
12
BRAKE BAND HUS-539102822
...
20
Pins HUS-596029501
...
22
BRAKE CROSS SHAFT HUS-539106969
