Husqvarna YTH1542 - 954567048 (2001-12) Riding Tractor

Model: YTH1542 - 954567048 (2001-12)

Back To Assemblies

Save Part Not Listed?
product name

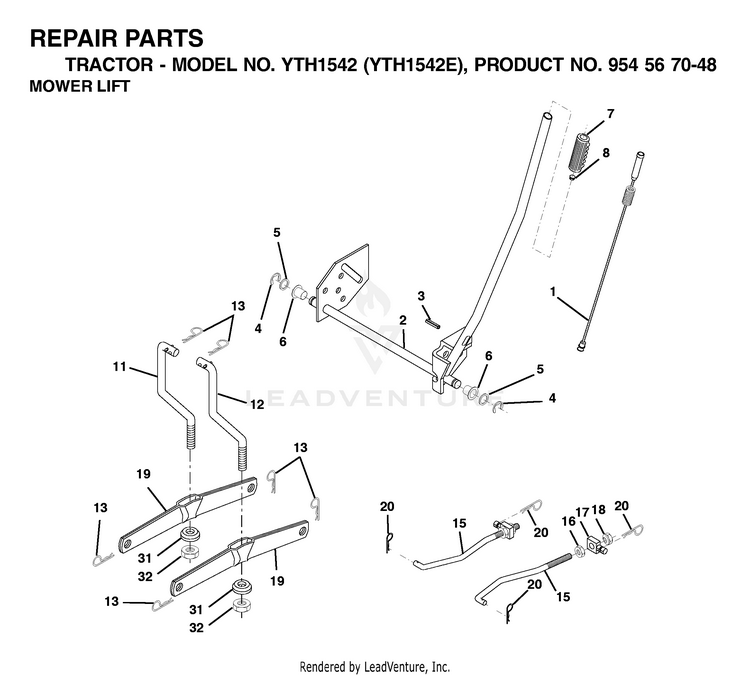

MOWER LIFT / DECK LIFT

...
...
15
LINK.SUSPENSION.FRONT HUS-532173288
...
4
RETAINING RING LT HUS-812000002
...
20
SPRING RETAINER HUS-532003146
...
16
Nuts HUS-596433401
...
12
LIFT LINK RH HUS-532145536
...
3
PIN GROOVE. HUS-532105767
...
17
TRUNNION HUS-532175689
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
2
SERVICE KIT SHAFT ASM RH HANDL HUS-529845601
...
11
LIFT LINK LH HUS-532145537
...
8
PLUNGER BUTTON KIT HUS-532125925
...
6
BEARING.NYLON HUS-532120183
...
13
RETAINER-SPRNG RB HUS-532124670
...
5
WASHER HUS-819211621
...
7
GRIP HANDLE HUS-532125631
...
19
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
18
GSPW NUTS HUS-596135601
...
1
WIRE ASM INNER W/ PLUNGER LT HUS-532159460
