Husqvarna YTH1542 - 954567048 (2001-12) Riding Tractor

Model: YTH1542 - 954567048 (2001-12)

Back To Assemblies

Save Part Not Listed?
product name

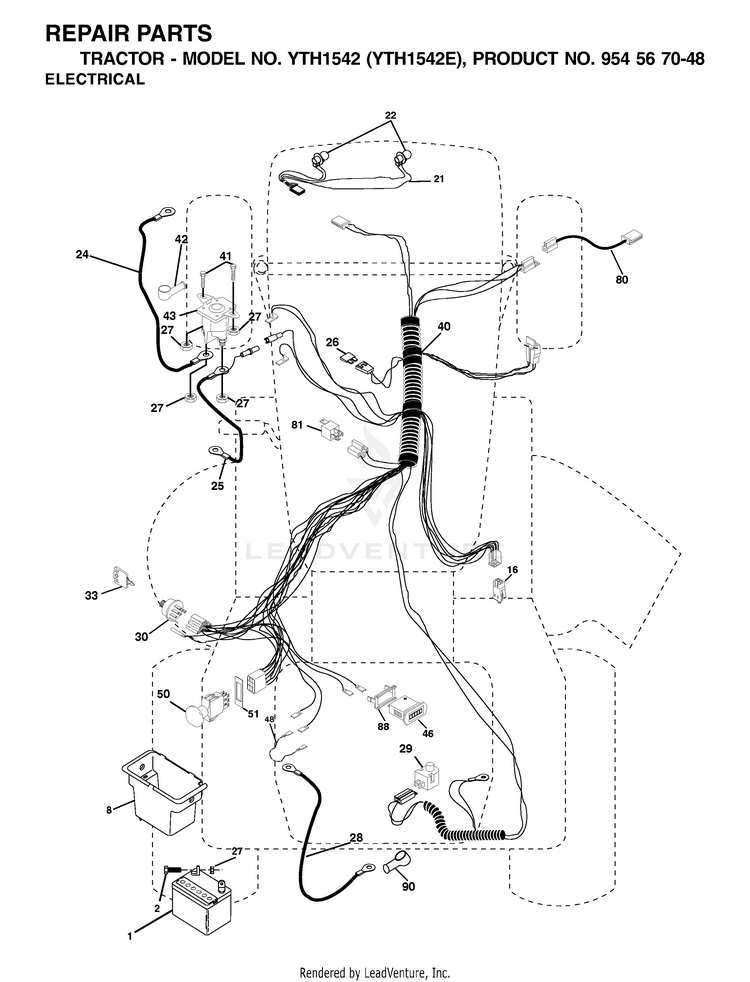

ELECTRICAL

...
...
80
HARNESS, CLUTCH HUS-532146685
...
21
HARNESS.ASM.LIGHT WSL HUS-532175685
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
28
CABLE T HUS-532004207
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
48
ADAPTER.AMMETER HUS-532140844
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
43
KIT SOLENOID .95 HUS-532146154
...
89
BRACKET SNAP-IN HOURMETER HUS-532169639
...
30
IGNITION SWITCH HUS-532175566
...
42
COVER.TERMINAL.RED HUS-532154336
...
33
KEY MLD GEN DELTA HUS-532140401
...
22
LIGHTBULB HUS-532004152
...
8
BOX.BATTERY.FENDER HUS-532176689
...
41
Screws HUS-596437001
...
81
RELAY.ASSY.T HUS-532109748
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
24
BATTERY CABLE HUS-532004799
...
40
HARNESS IGN. HUS-532179724
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
51
FRAME RETAINING RING HUS-532140405
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
25
CABLE BATTERY HUS-532146147
...
26
FUSE 20AMP HUS-532175158
