Husqvarna YTH1542 - 954567048 (2001-11) Riding Tractor

Model: YTH1542 - 954567048 (2001-11)

Back To Assemblies

Save Part Not Listed?
product name

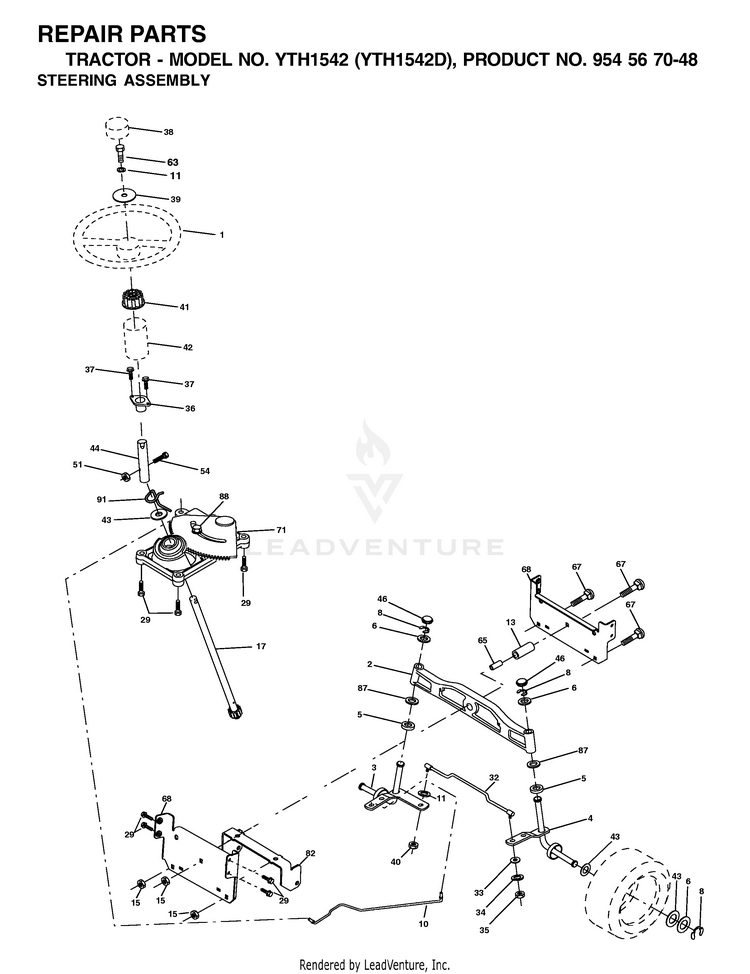

STEERING

...
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
67
BOLT CARRIAGE HUS-872110618
...
88
BOLT, SHOULDER 7/16-20 HUS-532175118
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
44
SHAFT EXT STEERING HUS-532153721
...
2
AXLE.ASM.LT.CAST.LGHTWGHT HUS-532193542
...
13
TUBE, PIVOT AXLE HUS-532136518
...
10
DRAGLINK.15".TIRES.2001 HUS-532175121
...
11
Washers HUS-596238701
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
51
Hardware HUS-596040501
...
34
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
91
CLIP.STEERING HUS-532175553
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
33
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
40
NUT HUS-873610600
...
36
KIT.BUSHING.STEERING HUS-532155106
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
82
SERVICE.KIT BRACKET HUS-531170201
...
43
WASHER HUS-532121749
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
32
TIE ROD HUS-532171888
...
54
Screws HUS-595305701
...
6
WASHER HUS-532121748
...
5
WASHER THRUST HUS-532006266
...
87
WASHER, FLAT .781 X 1 1/2" HUS-532173966
...
17
KIT.RPLMNT.SHAFT.STRG. HUS-532407600
...
42
STEERING BOOT, GRAY HUS-532145054
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
71
SERVICE KIT STEERING ASM HUS-531167801
...
38
INSERT,STR WHEEL HUS-532124416
...
35
NUT CROWNLOCK 3/8-24 HUS-873540600
...
63
Bolts HUS-596564401
...
8
RING CLIP HUS-812000029
...
39
WASHER.13/32x2 3/8x12GA HUS-583789501
...
65
SPACER.BRACE.AXLE HUS-532414736
...
1
STEERING WHEEL HUS-532124415
