Husqvarna YTH1542 - 954567048 (2001-04) Riding Tractor

Model: YTH1542 - 954567048 (2001-04)

Back To Assemblies

Save Part Not Listed?
product name

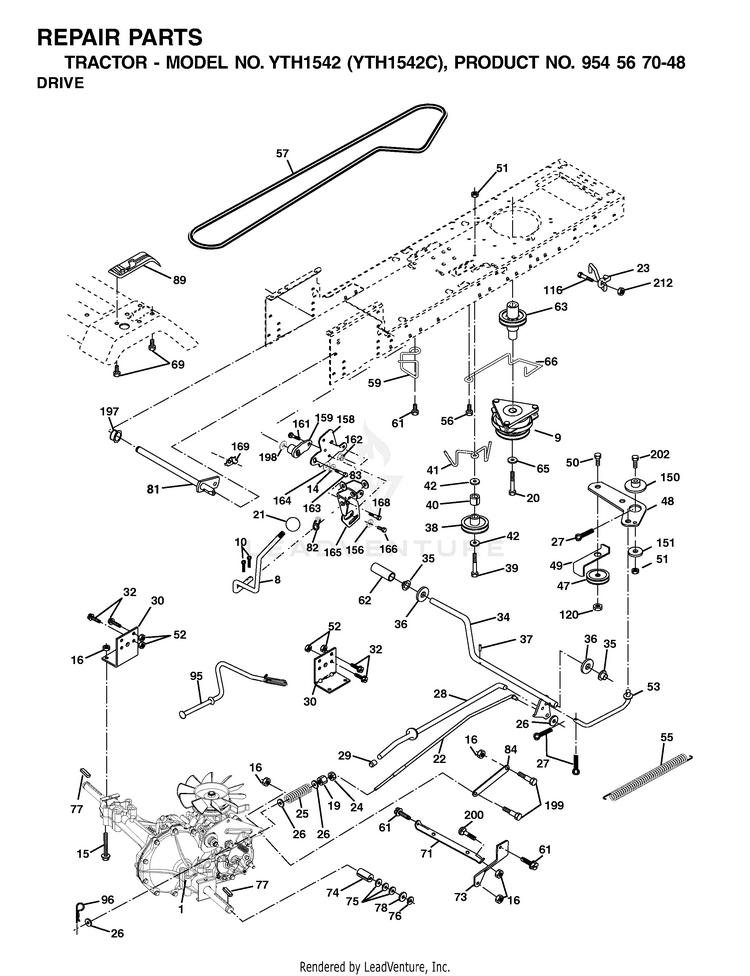

DRIVE

...
...
506 92 46-02
PIPE HUS-506924602
...
734 11 56-01
WASHER HUS-734181251
...
734 11 77-71
BUSHING HUS-734117771
...
535 41 26-01
RAIL HUS-535412601
...
506 86 96-01
BEARING HUS-506869601
...
734 11 82-01
WASHER HUS-734118201
...
506 81 49-04
ROD HUS-506814904
...
732 21 20-51
NUT HUS-732212001
...
506 94 13-06
ROD HUS-506941306
...
725 24 95-71
SCREW HUS-725249571
...
506 59 74-01
BOLT HUS-506597401
...
735 31 15-20
RETAINING RING HUS-735311520
...
506 98 00-01
SHAFT HUS-506980001
...
727 63 83-01
Bolt HUS-727638301
...
506 97 96-01
WHEEL HUS-506979601
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 78 99-01
LINK HUS-506789901
...
725 24 62-51
SCREW HUS-725246251
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
506 89 76-01
NUT HUS-506897601
...
506 81 38-01
PLATE HUS-506813801
...
506 53 56-03
SPRING HUS-506535603
...
725 24 61-51
BOLT HUS-725246151
...
535 41 23-01
HAND GUARD HUS-535412301
...
535 43 12-01
PIPE HUS-535431201
...
506 95 17-01
LINK HUS-506951701
...
735 31 17-00
RETAINING RING SGA 15 HUS-735311700
...
506 96 30-01
DECK ROLLER, FRONT HUS-506963001
