Husqvarna YTH1542 - 954567048 (2001-04) Riding Tractor

Model: YTH1542 - 954567048 (2001-04)

Back To Assemblies

Save Part Not Listed?
product name

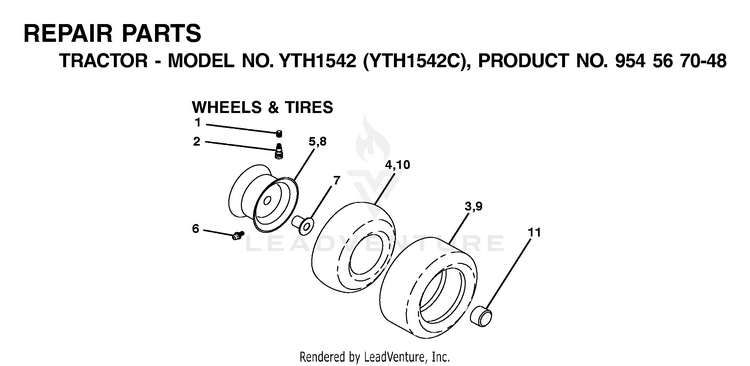

WHEELS & TIRES

...
...
506 53 86-01
Bracket HUS-506538601
...
721 43 49-01
Pin HUS-721434901
...
506 57 64-01
RETAINER HUS-506576401
...
506 94 68-01
Clip HUS-506946801
...
506 67 19-01
SPRING HUS-506671901
...
721 61 83-01
Split Pin HUS-721618301
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
506 59 75-01
WASHER HUS-506597501
...
729 54 14-01
SCREW HUS-729541401
...
531 00 50-14
BELT HUS-589530501
...
725 23 64-61
SCREW HUS-725236461
...
731 23 20-51
Nut HUS-731232001
...
506 91 76-05
FRAME HUS-535470201
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 59 74-01
BOLT HUS-506597401
...
734 11 56-01
WASHER HUS-734181251
...
531 00 50-17
BELT HUS-589530601
...
506 93 90-01
PULLEY HUS-535482401
...
506 67 08-01
CONNECTOR HUS-506670801
...
506 91 37-01
Cover HUS-506913701
...
506 53 87-01
Button HUS-506538701
...
531 00 75-72
BELT HUS-589531201
...
506 66 45-01
BELT GUIDE HUS-506664501
...
725 23 70-51
SCREW HUS-725237071
...
506 80 00-01
Bracket HUS-506800001
...
725 23 29-51
Slotted Truss Head Screw #10-32 x 5/8" HUS-725232951
...
506 67 33-01
FUEL CAP HUS-506673301
...
506 94 67-02
HOSE HUS-506946702
...
738 21 04-04
BALL BEARING 6004-2RS1 HUS-738210404
...
735 31 38-10
RETAINING RING HUS-735313810
...
506 53 85-01
Arm HUS-506538501
...
506 53 88-01
Pin HUS-506538801
...
506 57 01-03
BOLT HUS-506570103
...
506 76 96-01
FUEL TANK HUS-506769601
...
506 57 59-01
SHAFT PIVOT HUS-506575901
...
729 53 29-71
Screw HUS-729532971
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
735 58 35-01
CLIP HUS-735583501
...
506 96 95-01
COVER HUS-506969501
...
725 24 49-51
BOLT - M8X16 HUS-725244951
...
506 91 44-01
Shaft HUS-506914401
...
506 91 38-01
COVER HUS-506913801
...
506 96 57-01
Plug HUS-506965701
...
734 11 64-41
SPACER HUS-734116441
...
506 55 60-02
SCREW HUS-506556002
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 59 46-01
Center Panel HUS-506594601
...
506 89 20-01
NUT HUS-506892001
...
506 96 56-01
Plate HUS-506965601
...
506 77 57-01
WASHER HUS-506775701
...
506 57 63-01
Brackets HUS-590735401
...
725 23 68-51
Screw HUS-725236851
...
506 77 56-01
PULLEY HUS-535482201
...
506 76 97-03
BRACKET HUS-506769703
...
506 53 89-01
Spring HUS-506538901
...
506 76 98-03
BRACKET HUS-506769803
...
506 99 81-01
HUS-506998101
...
506 75 38-01
SHAFT HUS-506753801
...
506 56 65-01
CLAMP HUS-506566501
...
9
TIRE.20X10-8.TURF.SAVER HUS-532125833
...
- -
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
...
4
TUBE.5.3/4.5/6 HUS-532059904
...
8
RIM.ASM.8X7.REAR.SILVER HUS-532106108
...
10
TUBE - UNIVERSAL FOR 8" RIM HUS-532007152
...
1
VALVE CAP HUS-532059192
...
7
BEARING.FLANGE HUS-532009040
...
5
RIM.ASM.6X4.5.FRONT.SILVER HUS-532106732
...
11
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
3
TIRE.15X6-6.TURF.SAVER.FRONT HUS-532122073
...
2
VALVE STEM LT HUS-532065139
...
6
FITTING LT. HUS-532000278
