Husqvarna YTH1542 - 954567048 (2001-01) Riding Tractor

Model: YTH1542 - 954567048 (2001-01)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

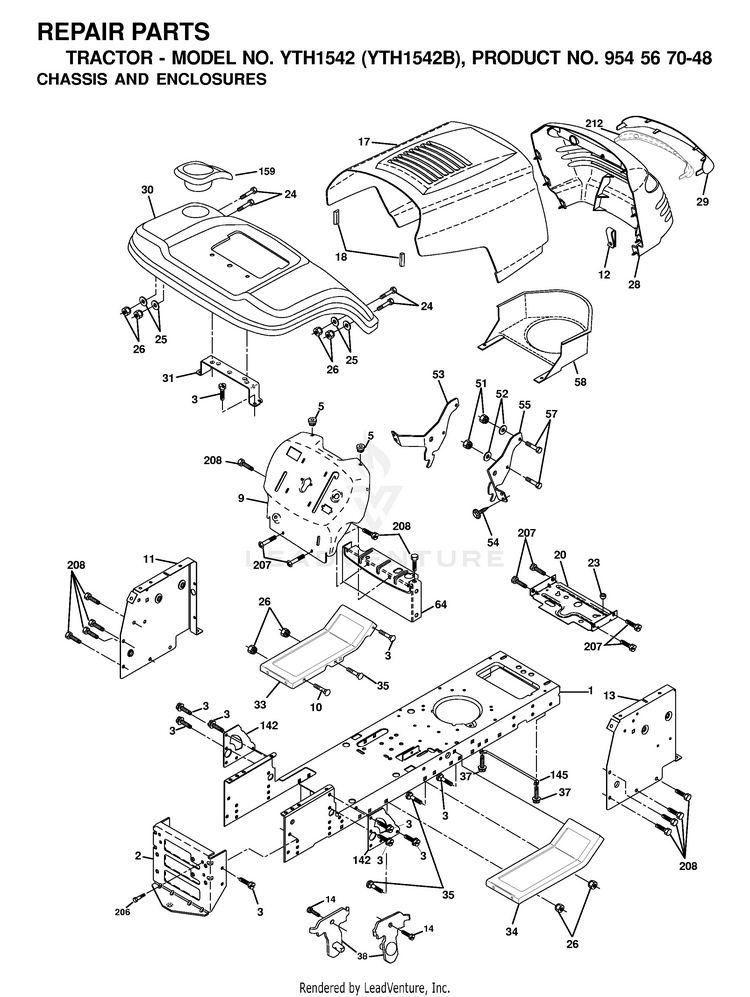

CHASSIS & ENCLOSURES

...
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
29
LENS HUS-532176645
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
142
PLATE REINFORCEMENT HUS-532175702
...
54
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
10
Bolts HUS-596728201
...
35
Bolts HUS-596136001
...
13
PANEL ASM, DASH RH HUS-532172106
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
52
Washers HUS-596135301
...
26
Nuts HUS-596322601
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
212
INSERT, LENS HUS-532174503
...
58
AIR DUCT P/L/LT HUS-532150127
...
57
Screws HUS-596230901
...
17
HOOD.STEEL.LT.ORANGE HUS-532159639
...
53
BRACKET.GRILLE.LH HUS-532144697
...
37
Screws HUS-596030701
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
24
Bolts HUS-596564401
...
55
BRACKET HUS-532144696
...
33
FOOT REST LH HUS-532147203
...
25
GSPH HUS-596134901
...
12
CLIP HUS-532145660
...
2
DRAWBAR, 12GA HUS-532176554
...
145
ROD.PIVOT.HOOD HUS-532409167
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
31
BRACKET FENDER HUS-532136619
...
51
NUT HEXAGON 1/4-20 ST ZPB HUS-595086601
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
9
DASH SLKSCRN. HUS-532168346
...
18
BUMPER HOOD T HUS-532126938
...
14
Bolts HUS-596564001
...
28
GRILLE/LENS ASM HUS-532179845
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
64
DASH LOWER HUS-532154798
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
...
...
