Husqvarna YTH150 - 954830081A (1995-10) Riding Tractor

Model: YTH150 - 954830081A (1995-10)

Back To Assemblies

Save Part Not Listed?
product name

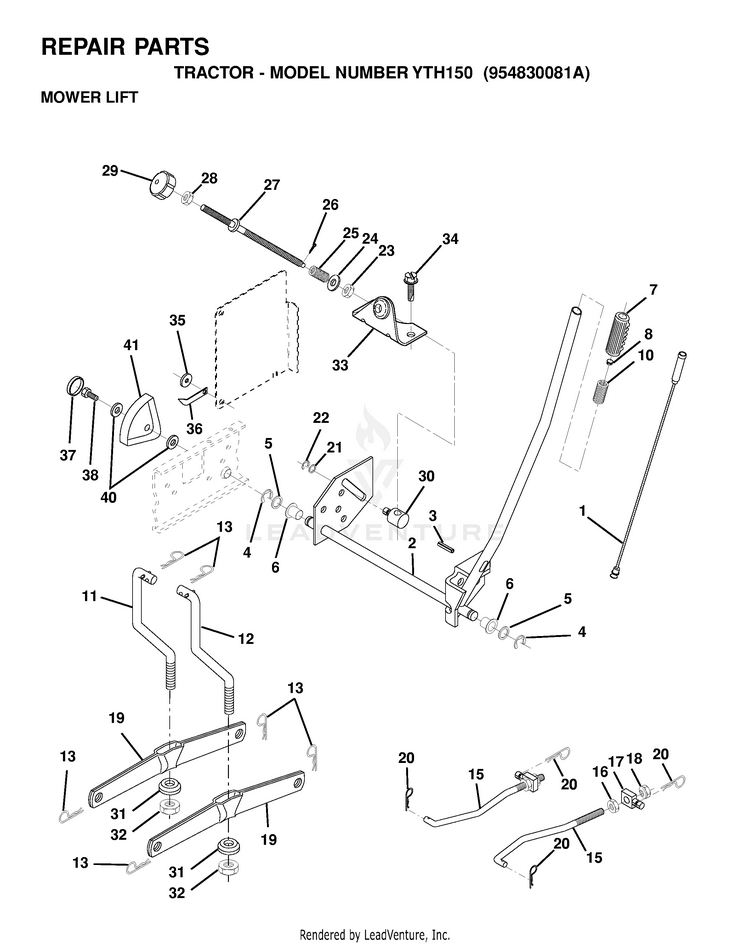

MOWER LIFT / DECK LIFT

...
...
4
RETAINING RING LT HUS-812000002
...
38
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
12
LIFT LINK RH HUS-532145536
...
24
WASHER HUS-819131016
...
5
WASHER HUS-819211621
...
29
KNOB INF 3/8-16 HUS-532138057
...
40
WASHER HUS-819112410
...
20
SPRING RETAINER HUS-532003146
...
13
RETAINER-SPRNG RB HUS-532124670
...
25
SPRING HUS-532002876
...
37
PLUG,HOLE HUS-532123935
...
35
WASHER T HUS-532120529
...
36
HEIGHT INDICATOR PNTR HUS-532123933
...
22
Ring, Klip #T5304-37 HUS-812000037
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
1
WIRE.INNER.HANDLE.LIFT.LEVER HUS-532136973
...
17
TRUNNION HUS-532175689
...
6
BEARING.NYLON HUS-532120183
...
18
GSPW NUTS HUS-596135601
...
30
TRUNION LT HUS-532110810
...
15
FRONT LINK HUS-532127218
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
11
LIFT LINK LH HUS-532145537
...
27
ROD ADJ LIFT HUS-532126971
...
3
PIN GROOVE. HUS-532105767
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
19
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
7
GRIP HANDLE HUS-532125631
...
26
Pins HUS-596917601
...
23
NUT T HUS-532110807
...
2
SHAFT ARM LIFT RH HUS-532145117
...
41
HEIGHT INDICATOR HUS-532123934
...
33
BRACKET HUS-532140168
...
16
Nuts HUS-596433401
...
10
SPRING, COMP T HUS-532122512
...
34
Bolts HUS-596564001
...
21
Washer 15/32 x 3/4 x 16 Gauge HUS-819151216
...
8
PLUNGER BUTTON KIT HUS-532125925
Schematic Image Zoomed
