Husqvarna YTH150 - 954140007H (1998-09) Riding Tractor

Model: YTH150 - 954140007H (1998-09)

Back To Assemblies

Save Part Not Listed?
product name

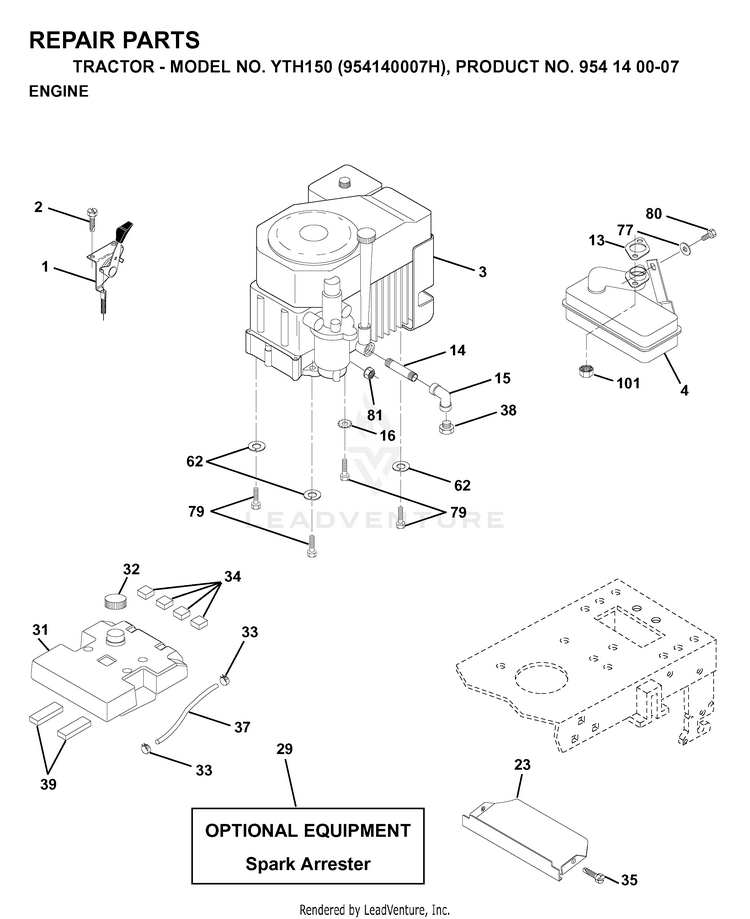

ENGINE

...
...
77
WASHER - 26X6.5X1.6 HUS-734115441
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
23
PROTECTOR HUS-532159880
...
80
Bolt, Hex Head, Fin. 5/16-18 x 1/2 HUS-874760508
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
16
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
39
PAD IDLER TI HUS-532109227
...
31
TANK.FUEL(3.5.GAL) HUS-532157103
...
2
Bolts HUS-596582501
...
15
VALUE.OIL.DRAIN HUS-532428287
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.8" HUS-587044808
...
33
HOSE CLAMP HUS-532123487
...
14
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 HUS-813280328
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
4
MUFFLER.KOHL.CV.SINGLE.W/PORT HUS-532159420
...
34
PAD-SPACER LT HUS-532106082
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
79
HUS-740108025
...
101
Nuts HUS-596433401
