Husqvarna YTH150 - 954140007E (1998-02) Riding Tractor

Model: YTH150 - 954140007E (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

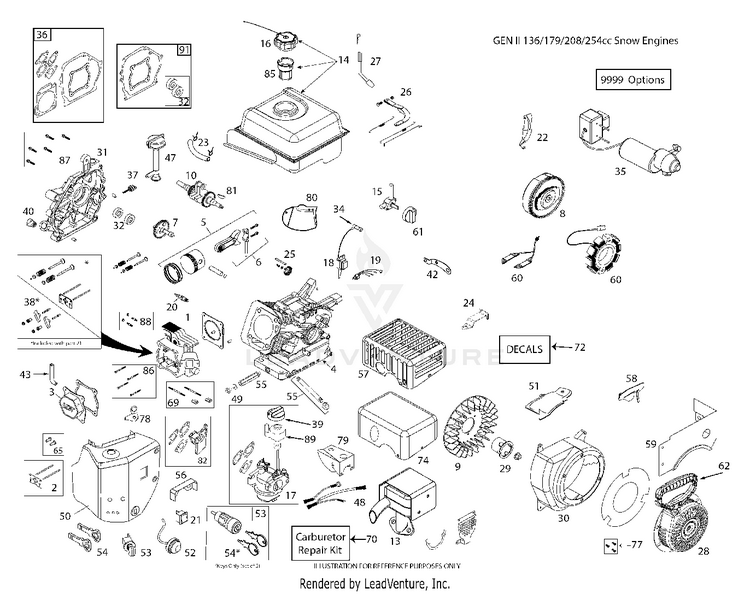

ENGINE

...
...
54
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
52
PRIMER.BULB.WITH HOSE (SNOW) HUS-532424949
...
89
NOT REQUIRED FOR THIS ENGINE HUS-TBD
...
27
KIT.GOVERNOR.CRANK(SK208-3100) HUS-532420602
...
70
CARB.REPAIR.KIT.LCT.SK9900.2 HUS-580353601
...
65
TAPPET.KIT.LCT.208CC HUS-581372801
...
39
CHOKE.KNOW.SNOW(SKSN4500) HUS-532429224
...
30
BLOWER HOUSING ASSY HUS-581192001
...
14
FUEL.TK.ASSY.GENII.SKSN0311.1 HUS-532436564
...
61
FUEL KNOB-SNOW HUS-532432752
...
9999
HIGH.ALTITUDE.JET 6,000FT HUS-586326201
...
47
TUBE ASSY HIGH OIL-FILL HUS-581007201
...
7
CAMSHAFT MCR LCT 179 HUS-587176001
...
2
KIT.PUSH.ROD.SRV(SK208-1001) HUS-532420579
...
9
FLYWHEEL FAN 420586 HUS-532420586
...
4
CYLINDER.ASM.SKSN0001.2 HUS-532436567
...
1
ENGINE LCT 179 CC STORMFORCE E HUS-585742605
...
59
FUEL.TNK.SKRT.GENII.SKSN0103.1 HUS-532436562
...
21
SWITCH.ON/OFF(SKSN-0403) HUS-532424957
...
38
ROCKER ARM KIT HUS-532429691
...
36
GASKET KIT ENGINE LCT 208 HUS-587176701
...
26
CARBURETTOR GOVERNOR LINK.ASM. HUS-581768701
...
23
KIT.FUEL.HOSE.208CC.SING/STAGE HUS-532438014
...
15
FUEL.PETCOCK.SNOW(SKSN4900) HUS-532429234
...
13
MUFFLER KIT LCT SKSN2205.1 HUS-587737801
...
43
TUBE.BREATHER.LCT.208 HUS-580353401
...
82
SPACER.CARBURETOR.208CC.LCT HUS-585020503
...
69
CARB.STUDS & COUPLING KIT.SNOW HUS-532424951
...
24
SPEED.CTRL.BRKT.(SKSN0150) HUS-532429259
...
6
PISTON ROD ASM LCT 208 HUS-587175801
...
18
CDI.BOX SNOW HUS-532424955
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
88
STUD.MUFFLER.KIT.LCT HUS-586326801
...
78
BRACKET HUS-581459301
...
53
SWITH.KEY.ASSEM.SNOW.SINGLE.ST HUS-532424954
...
58
GOVERNOR.LINK.SHIELD PLATE HUS-532424960
...
16
FUEL CAP OVERSIZED CLICK STYLE HUS-532424942
...
8
FLYWHL.ASSY.MANUL.SK2081700 HUS-532429236
...
79
COVER.CARBURETOR.SNOW HUS-585773701
...
91
COVER CRANKCASE GASKET HUS-587525701
...
32
SEAL KIT (2 PCS) HUS-532429599
...
49
KIT.OIL.DRAIN.PLUG(SK2089911 HUS-532435495
...
5
PISTON ROD ASM LCT 208 HUS-587175801
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
55
EXTENDED OIL DRAIN TUBE HUS-532432686
...
81
KEYS.FLYWHEEL.208/414CC.5PACK HUS-585297201
...
40
NON REMOVABLE PLUG HUS-532429598
...
17
CARBURETTOR L10-1 LCT 208 HUS-587176401
...
20
SPARK.PLUG(2083810) HUS-532424939
...
10
CRANKSHAFT KEYED LCT 179 HUS-587176101
...
87
KIT.BOLT.CRANKCASE.COVER.6PC HUS-586326901
...
25
GOVENOR.GEARS ASM(SK2082900) HUS-532429646
...
74
COVER.MUFFLER.HEAT.SHIELD. HUS-581768801
...
29
STRTER.CUP(NON-SLOT)SKSN0601.2 HUS-532436968
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
86
KIT.BOLT.CYLINDER.HEAD.(4PC) HUS-586327301
...
28
RECOIL.STRT.ROUND(BLK) SNOW HUS-532436967
...
3
VALVE COVER LCT 179/208 HUS-587176901
...
50
HEATER.BOX.ASY-GEN2 HUS-532436561
...
31
CRANKCASE.CVR.PRESS.IN.HI-OIL. HUS-585772701
...
37
DIPSTICK SMALL HUS-532420961
