Husqvarna YTH150 - 954140007D (1998-02) Riding Tractor

Model: YTH150 - 954140007D (1998-02)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

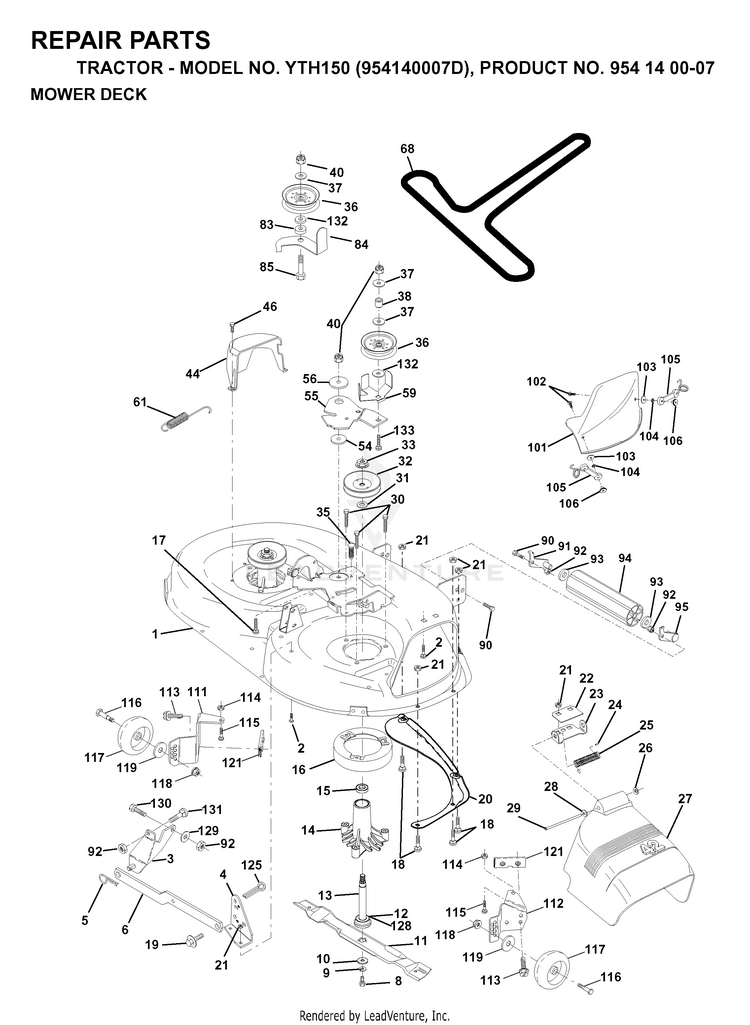

MOWER DECK / CUTTING DECK

...
...
38
IDLER SPRING SPACER HUS-532132823
...
19
BOLT SHD 5/16-18 HUS-532132827
...
15
BEARING HUS-532110485
...
36
CLG HUS-597025001
...
11
42" MULCH BLADE HUS-594892701
...
128
WASHER FELT HUS-532153390
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
10
WASHER.BLADE HUS-532140296
...
92
Nuts HUS-596322601
...
84
SERVICE KIT BELT KEEPER HUS-531150901
...
59
SERVICE KIT GUARD HUS-531165901
...
93
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
40
Nuts HUS-596322601
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
83
WASHER HUS-532120958
...
25
SPRING TORSION HUS-532123713
...
68
V-BELT TRIPATH HUS-532144200
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
32
PULLEY MANDREL HUS-532173436
...
35
FASTENER.XMAS.TREE HUS-532133835
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
104
LOCKWASHER #10 HUS-810071000
...
22
STIFFENER BRACKET HUS-532134753
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
4
BRKT DECK SW BAR HUS-532138440
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
90
Bolts HUS-596564401
...
23
SERVICE KIT BRKT HUS-529845901
...
21
Hardware HUS-596040501
...
85
BOLT CARRIAGE HUS-872110618
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
29
Rods HUS-595297001
...
121
BRACKET.EXTRUDED.GAGE.WHEEL HUS-532143723
...
130
Bolts HUS-596564401
...
9
Washers HUS-596238701
...
105
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
133
BOLT HUS-872110622
...
26
NUT PUSH M HUS-532110452
...
17
BOLT CARRIAGE HUS-872110618
...
116
Bolts HUS-596434404
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
5
RETAINER-SPRNG RB HUS-532124670
...
24
CAP-SLEEVE LT HUS-532105304
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
13
KIT MANDREL W/NUT HUS-532137646
...
94
NOSE ROLLER HUS-532132264
...
8
BLADE BOLT HUS-532850857
...
102
Screws HUS-596039001
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
1
DECK SVC 42" TP HUS-532176031
...
18
BOLT HUS-872140505
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
119
GSPH HUS-596134901
...
113
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
33
KIT.NUT.FLANGE HUS-532139729
...
2
GSPW Bolts HUS-595901601
...
129
GSPH HUS-596134901
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
106
Nuts HUS-596987401
...
131
Bolts HUS-596728201
...
114
Hardware HUS-596040501
...
101
COVER MULCH 42" HUS-532136420
...
103
WASHER HUS-819061216
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
61
SPRING EXTENSION HUS-532131950
...
3
BRKT ASM SWAY BAR HUS-532138017
...
- -
DECK ASSEMBLY-42" HUS-532145452
...
118
Nuts HUS-596322601
...
117
WHEEL GAGE DONUT HUS-532133957
...
125
Pin Cotter 1/4 x 1 Plated HUS-876020816
...
132
Washer 13/32 x 1-3/8 x 13 Ga. HUS-819132203
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
54
WASHER HUS-532178515
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
55
KIT.CAM.ROLLER.42".SERVICE HUS-532151785
...
...
...
